Description

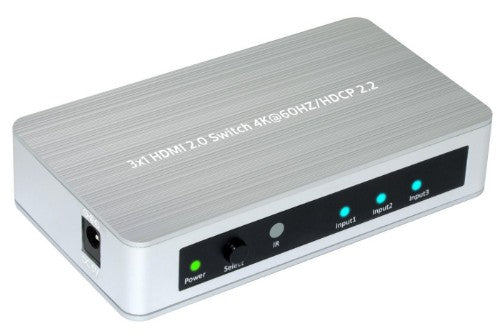

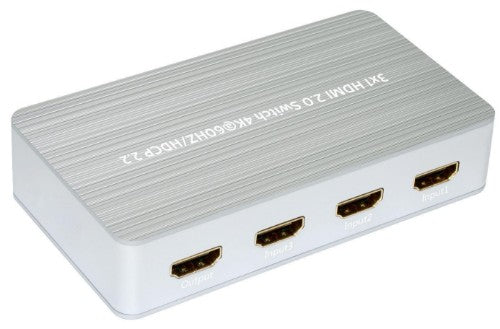

Slim 3x1 HDMI2.0 Aluminium 4K 60HZ/HDCP 2.2 Switcher
This is an intelligent HDMI2.0 3X1 Amplifier Switcher. It allows three HDMI source devices switched into one HD monitor or projector.
Key Features
- Supports highest video resolution up to 4K60Hz
- Supports uncompressed audio such as LPCM.
- HDCP pass-through.
- Support 3D all format, including 1080p@23.98/24Hz, 720p@
- 59.94/60Hz/50Hz
Description
Introduction:This is an intelligent HDMI2.0 3X1 Amplifier Switcher. It allows three HDMI source devices switched into one HD monitor or projector.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 2.0 |
| HDMI ports quantity | 4 |
| Number of HDMI outputs | 1 |
| HDMI in | 3 |
| DC-in jack | Yes |
| Features | |
| Product colour | Aluminium |
| Supported video modes | 480i |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Material | Aluminium |
| HDCP | Yes |
| Bandwidth | 600 MHz |
| Power | |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
| Weight | 210 g |
| Package width | 123 mm |
| Package height | 80 mm |
| Package depth | 83 mm |
| Package weight | 254 g |
| Technical details | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Product colour | Aluminium |
| Video port type | HDMI |
| Supported video modes | 480i |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Material | Aluminium |
| HDMI version | 2.0 |
| HDMI ports quantity | 4 |
| HDCP | Yes |
| Remote control included | Yes |
| Bandwidth | 600 MHz |
| Harmonized System (HS) code | 85176990 |
| Packaging data | |
| Package width | 123 mm |
| Package height | 80 mm |
| Package depth | 83 mm |
| Package weight | 254 g |
| Packaging content | |
| Manual | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
