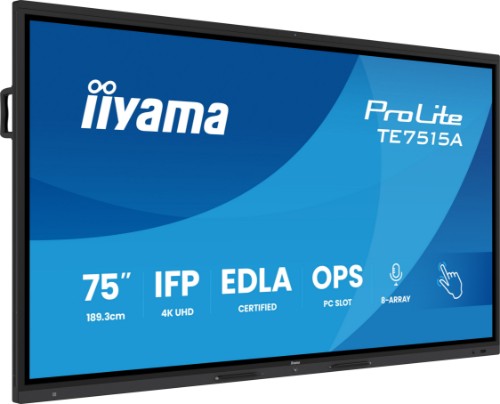

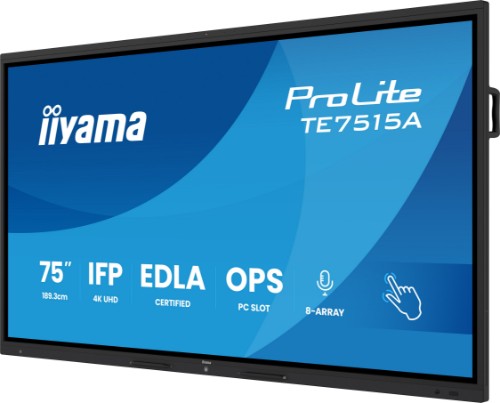

75" 4K UHD Google EDLA Certified IFP Interactive Display – Where Design Meets Performance
Reasons To Buy
Aesthetics which Elevate Any Environment
Modern, minimal, and made to elevate any environment—this design blends seamlessly into classrooms and boardrooms alike. It’s not just a display; it’s a statement. Clean lines, premium finish, and a presence that enhances focus and professionalism without stealing the spotlight.
Google EDLA Certified
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.
iiWare 21E (Android 14 OS)
Empower your presentations with iiWare 21E, featuring Google EDLA, iiControl (DMS), iiShare (Wireless Presentation), WhiteBoard, Cloud Drives, iiBrowser and file manager via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.
Quick-Radial-Menu
This feature provides a quick way to operate the interactive display. Long press with five fingers to bring up the Quick Radial Menu. Users can directly select the frequently used apps in the apps menu and place them in the Quick Radial Menu.
iiControl - Device Management System
iiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiControl DMS is committed to maintaining compliance with GDPR.
DeepContrast-IR+
The state-of-the-art DeepContrast-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.
PIR-Motion-Sensor
The PIR motion sensor enhances energy efficiency by detecting movement and automatically adjusting display settings. It reduces power consumption when no activity is detected, extending device lifespan. Ideal for offices and classrooms, it ensures a smart, hands-free operation while optimizing performance and sustainability.
Pen-PickUp-Sensor
The Stylus Pen Pick-Up Sensor detects when the pen is lifted from its holder, ensuring instant responsiveness and seamless transitions between touch and stylus input. Ideal for interactive displays, it enhances workflow efficiency by automatically activating writing mode, reducing delays, and improving the overall user experience.
Standalone Solution & Connectivity
The OPS PC Slot offers a convenient standalone solution, allowing easy integration without the need for additional devices. The USB-C connection provides seamless connectivity, enabling quick data transfer, video output, and power through a single cable for enhanced versatility and ease of use.

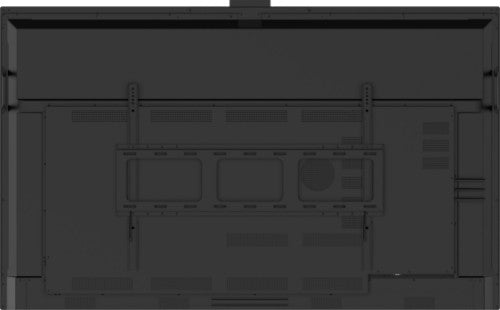

Wall Mount
The included wall mount bracket ensures secure and stable installation of your display. Designed for easy setup, it supports VESA compatibility and offers a sleek, space-saving solution. Its durable construction guarantees reliability, making it ideal for classrooms, offices, and meeting rooms.
Description
Elegance and functionality come together in the ProLite TE7515A-B1AG. This 75” 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE7515A elevates the visual experience of any room. It’s more than a tool—it’s part of your space. Coupled with DeepContrast-IR+ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi 6, Bluetooth 5.0, NFC reader, and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE7515A-B1AG promotes seamless teamwork—whether you're presenting, teaching, or brainstorming. The TE7515A-B1AG isn’t just an interactive display—it’s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.
Specifications
| Display |
|---|
| Panel type |
IPS |
| Display number of colours |
1.07 billion colours |
| Number of simultaneous touchpoints |
40 |
| Touchscreen |
Yes |
| Active display area (W x H) |
1650 x 928 mm |
| Display diagonal |
190.5 cm (75") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
550 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.43 x 0.43 mm |
| Display diagonal (metric) |
189.3 cm |
| Native aspect ratio |
16:9 |
| Anti-glare screen |
Yes |
| Number of simultaneous touchpoints (Android) |
32 |
| Touchscreen technology |
Infrared |
| Surface hardness |
7H |
| Multi-touch |
Yes |
| Glass thickness |
3.2 mm |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| DisplayPort version |
1.2 |
| USB port |
Yes |
| DisplayPorts in |
1 |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN data rates |
1000 Mbit/s |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
2 |
| USB ports quantity |
5 |
| OPS module slot |
Yes |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
100 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
60 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Interactive flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal |
| Product colour |
Black |
| Panel mounting interface |
800 x 400 mm |
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS), EPEAT |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Screen shape |
Flat |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Ambient light sensor |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Picture-in-Picture |
Yes |
| On Screen Display (OSD) languages |
Multi |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
14 |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Motion sensor |
Yes |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
216 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
216 kWh |
| Computer system |
|---|
| Processor cores |
7 |
| Operating system installed |
Android |
| Internal memory |
16 GB |
| Internal storage capacity |
128 GB |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A53+Cortex-A72 |
| Operating system version |
14 |
| Weight & dimensions |
|---|
| Display width |
1710.2 mm |
| Display depth |
87.1 mm |
| Display height |
1036.3 mm |
| Display weight |
54.6 kg |
| Packaging data |
|---|
| Package width |
1860 mm |
| Package depth |
1860 mm |
| Package height |
1125 mm |
| Package weight |
67.6 kg |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
AC, HDMI, USB |
| Stylus pen |
Yes |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Cables included |
AC, HDMI, USB |
| Stylus pen |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
-20 - 60% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS), EPEAT |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| Number of simultaneous touchpoints |
40 |
| Ambient light sensor |
Yes |
| OPS slot |
1 |
| Thin Client |
|---|
| Operating system installed |
Android |
| Internal memory |
16 GB |
| Internal storage capacity |
128 GB |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
IPS |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| Number of simultaneous touchpoints |
40 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Audio output |
Mini jack |
| Audio input |
Mini jack |
| Stylus pen |
Yes |
| Energy efficiency scale |
A to G |
| OPS module slot |
Yes |
