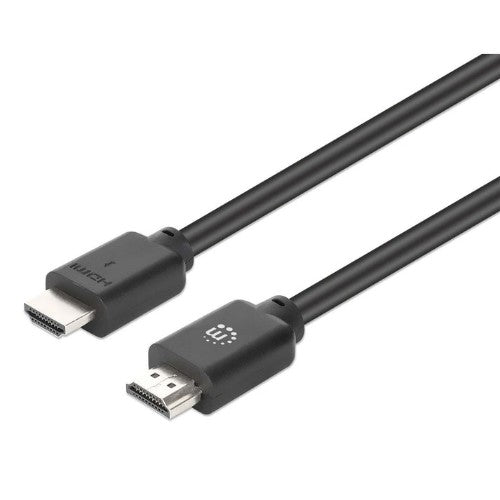

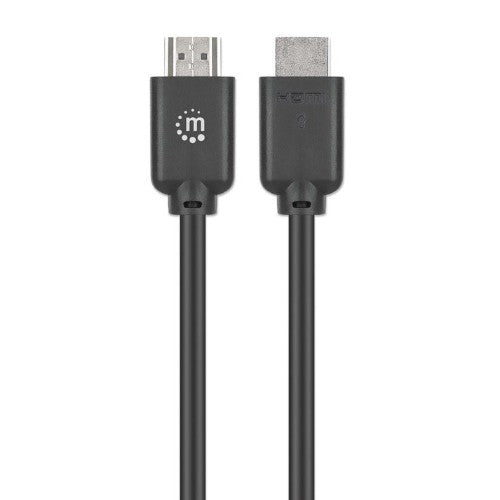

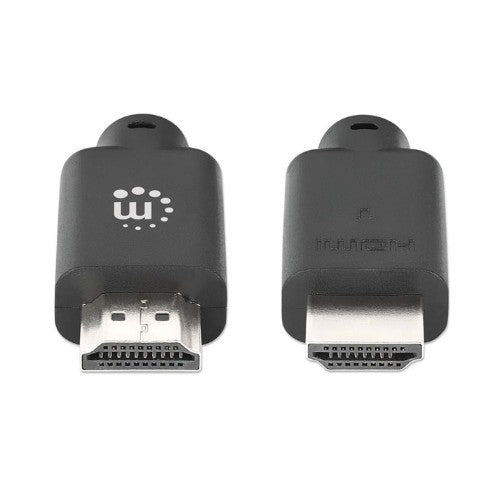

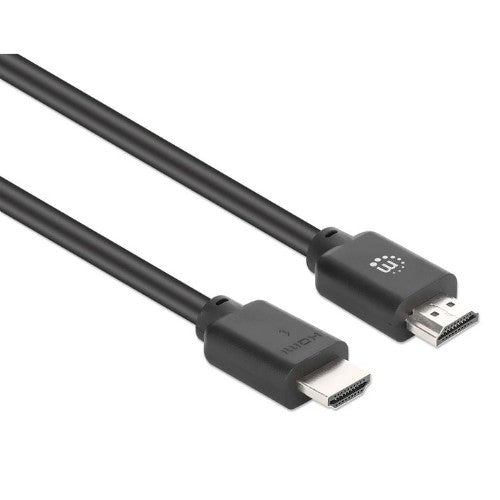

Manhattan 356671, 5 m, HDMI Type A (Standard), HDMI Type A (Standard), 3D, 18 Gbit/s, Black
Description
Manhattan 356671. Cable length: 5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, 3D, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product colour: Black
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
240 Hz |
| Dolby technologies |
Dolby Atmos, Dolby Vision |
| HDMI Ethernet channel |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Product colour |
Black |
| Cable length |
5 m |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Cable material |
Copper-clad steel (CCS) |
| Magnetically shielded |
Yes |
| AWG wire size |
30 |
| Data transfer rate |
18 Gbit/s |
| 3D |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Supported video modes |
1080p, 1440p, 2160p |
| HDCP |
Yes |
| Plug and Play |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| HDCP version |
2.3 |
| RGB support |
4:4:4 |
| Colour sampling |
4:4:4 |
| Number of shielding layers |
2 |
| Cable type |
Round cable |
| Shield material |
Aluminium |
| HDMI cable type |
High Speed HDMI cable |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 96% |
| Certificates |
|---|
| Compliance certificates |
CE, REACH, RoHS, UKCA |
| Weight & dimensions |
|---|
| Weight |
215 g |
| Cable diameter |
6 mm |
| Package weight |
225 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
225 g |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Compliance certificates |
CE, REACH, RoHS, UKCA |
