Description

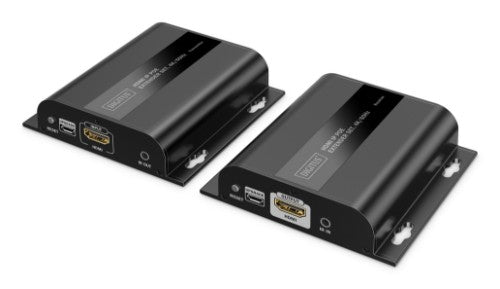

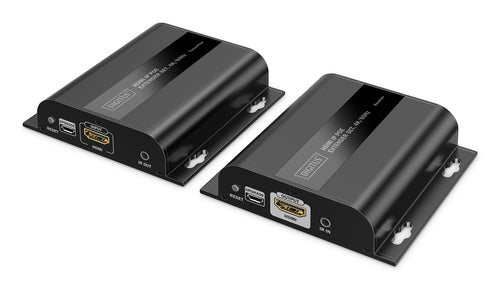

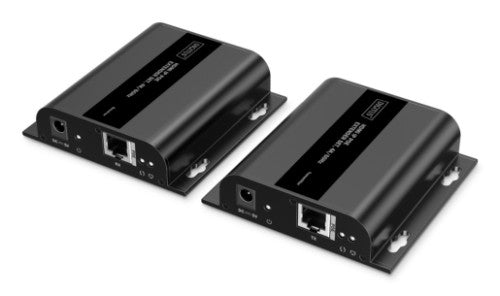

HDMI IP Extender Set, 4K/60Hz 120/200 m, PoE, One-to-Many, CAT, Black
- Long range: AV signal transmission via CAT6 (or higher) cable up to 200 m - point-to-point connection
- Expandable via IP: Supports up to 253 receivers (displays) - Point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Expansion options: Additional receivers (RX) available separately (model: DS-55354)
- Flexible installation thanks to PoE support: Complete power supply via PoE network switch - no external power supply units required
- Outstanding image quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
- IR interface enables remote control of the input source from the output screen
- Supports CAT6 (or higher) network cables
- Suitable for wall mounting
The HDMI IP Extender Set, 4K/60Hz enables the transmission of HDMI AV signals in ultra-high-definition 4K quality (4096x2160p at 60Hz) over long distances of up to 200 meters - thanks to the powerful point-to-point connection via a CAT6 network cable or higher. The set is fully powered via a PoE network switch, no external power supply units are required. Expansion via IP allows the system to be scaled flexibly and supports up to 253 receivers (displays) for point-to-multipoint transmission. In addition, the existing 1G network infrastructure can be used, enabling unlimited signal range through cascading via network switches. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354). The excellent picture quality is always maintained: Thanks to a low latency of just 150-220 ms, transmission is smooth and razor-sharp in UHD. Another practical feature is the integrated IR interface, which enables remote control of the input source directly from the output screen. The device is also suitable for wall mounting, allowing for space-saving installation. Ideal for professional AV applications, home cinema setups or use in companies - this HDMI IP extender set combines the highest transmission quality with maximum flexibility.
Key Features
- Max. Resolution: Ultra HD 4K/60Hz (4096x2160p)
- Max. Range point-to-point connection: 200 m
- Max. Range point-to-multipoint connection: 120 m
- Max. Cascading range per section: 120 m
- Supports CAT6 or higher network cables
- POE support - full power supply via PoE network switch
- HDMI 2.0
- HDCP 2.2 / 1.4
- Max. Video bandwidth: 18 Gbps
- Latency: 150-220 ms (4K/60Hz), 80-130 ms (Full HD)
- Max. HDMI cable length: 5 m
- Suitable for wall mounting
- Supports up to 253 receiver units
- Protection against short circuit, overvoltage, ESD (electrostatic discharge)

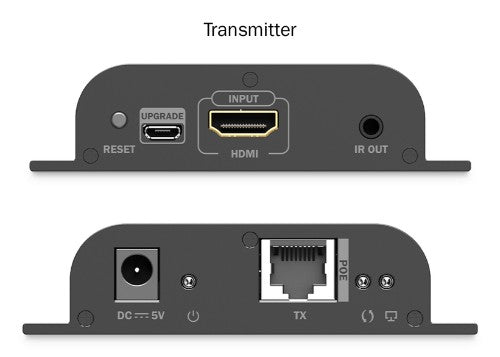

- Transmitter unit (TX) connections:
- 1x HDMI input (4K/60Hz) - Signal source connection
- 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection
- 1x IR output -reception of the IR signal
- 1x power supply connection (DC 5V/1A) - Only optional: connection of external power supply unit (not included)
- 1x Micro USB - FW Update Port
- 1x reset button
- 3x status LED

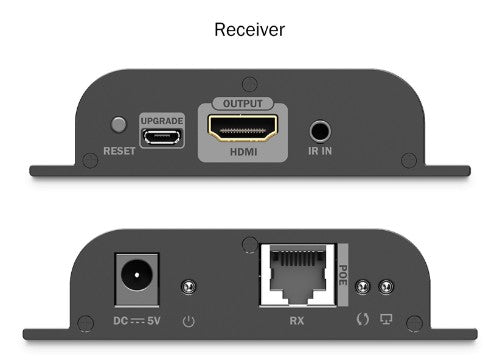

- Receiver unit connections (RX):
- 1x HDMI output (4K/60Hz) - Display connection
- 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection
- 1x IR input - forwarding of the IR signal
- Operating temperature: -20° - 60° C
- Power consumption: approx. 2.5 W
- Compression: H.265
- Dimensions (1 unit): L 9.7 x W 9.4 x H 2.4 cm
- Weight: TX 166 g, RX 164 g
- Housing: Metal
- Color: Black
Description
Enables HDMI AV signal transmission in UHD resolution (4K/60Hz) over a distance of up to 200 m in point-to-point connection via a CAT6 (or higher) network cable. Thanks to PoE support, no external power supply is required.- Long range: AV signal transmission via CAT6 (or higher) cable up to 200 m - point-to-point connection
- Expandable via IP: Supports up to 253 receivers (displays) - Point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Expansion options: Additional receivers (RX) available separately (model: DS-55354)
- Flexible installation thanks to PoE support: Complete power supply via PoE network switch - no external power supply units required
- Outstanding image quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
- IR interface enables remote control of the input source from the output screen
- Supports CAT6 (or higher) network cables
- Suitable for wall mounting
The HDMI IP Extender Set, 4K/60Hz enables the transmission of HDMI AV signals in ultra-high-definition 4K quality (4096x2160p at 60Hz) over long distances of up to 200 meters - thanks to the powerful point-to-point connection via a CAT6 network cable or higher. The set is fully powered via a PoE network switch, no external power supply units are required. Expansion via IP allows the system to be scaled flexibly and supports up to 253 receivers (displays) for point-to-multipoint transmission. In addition, the existing 1G network infrastructure can be used, enabling unlimited signal range through cascading via network switches. For even greater flexibility, additional receivers (RX) are available separately (model: DS-55354). The excellent picture quality is always maintained: Thanks to a low latency of just 150-220 ms, transmission is smooth and razor-sharp in UHD. Another practical feature is the integrated IR interface, which enables remote control of the input source directly from the output screen. The device is also suitable for wall mounting, allowing for space-saving installation. Ideal for professional AV applications, home cinema setups or use in companies - this HDMI IP extender set combines the highest transmission quality with maximum flexibility.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 200 m |
| Supported video modes | 2160p |
| LED indicators | Yes |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP version | 1.4/2.2 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 200 m |
| Supported video modes | 2160p |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB ports quantity | 2 |
| USB connector type | Micro-USB |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (transmitter) (max) | 2.5 W |
| Power consumption (receiver) (max) | 2.5 W |
| Output current | 1 A |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| External power adapter | Yes |
| Power source type | DC |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Receiver weight | 164 g |
| Transmitter weight | 166 g |
| Transmitter dimensions (WxDxH) | 94 x 97 x 24 mm |
| Receiver dimensions (WxDxH) | 94 x 97 x 24 mm |
| Package depth | 199 mm |
| Package width | 149 mm |
| Package height | 80 mm |
| Package weight | 570 g |
| Packaging data | |
| Package depth | 199 mm |
| Package width | 149 mm |
| Package height | 80 mm |
| Package weight | 570 g |
| Packaging content | |
| Cables included | IR |
| Quick start guide | Yes |
| AC adapter included | Yes |
