Description

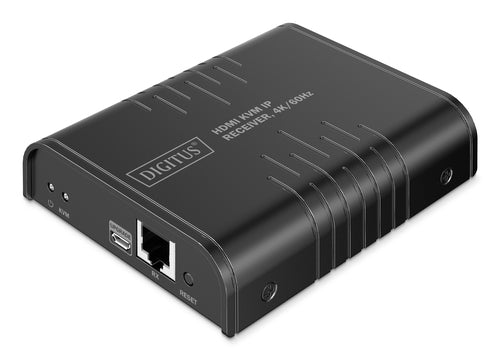

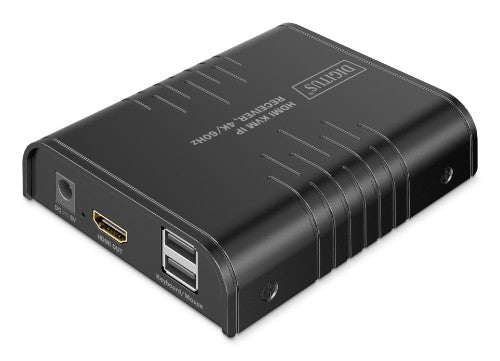

HDMI Receiver for DS-55355, 4K/60Hz 120/200 m, One-to-Many, CAT, Black
- Expandable via IP: Expand the HDMI IP Extender Set (DS-55355) to up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Additional connectivity & control: KVM function for connecting mouse & keyboard as well as touch screen support on the receiver side
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 120-170 ms
- Supports CAT6 (or higher) network cables
Expand your existing HDMI IP Extender Set (DS-55355) with additional receiver units and experience a highly flexible and powerful AV solution. Thanks to point-to-multipoint technology, you can transmit content over IP to up to 253 displays - ideal for professional applications in corporate, educational or digital signage environments. Use your existing 1G network infrastructure to transmit signals over unlimited distances or use additional 1G network switches for cascaded expansion. For even more functionality, the receiver offers an integrated KVM function that enables mouse and keyboard connection as well as touch screen support - perfect for flexible control of the signal source. Enjoy outstanding picture quality with a razor-sharp UHD resolution of up to 4K/60Hz (4096x2160p) and a low latency of just 120-170 ms. The connection is made via CAT6 or higher network cables to ensure stable and reliable signal transmission. With the HDMI KVM IP Receiver (DS-55356), you get a scalable solution for professional use that combines maximum flexibility and outstanding performance.
Key Features
- Max. Resolution: Ultra HD 4K/60Hz (4096x2160p)
- Max. Range point-to-point connection: 200 m
- Max. Range point-to-multipoint connection: 120 m
- Max. Cascading range per section: 120 m
- KVM support: Mouse & keyboard connection and touch display on the receiver side
- Supports CAT6 or higher network cables
- HDMI 2.0
- HDCP 2.2 / 1.4
- Max. Video bandwidth: 18 Gbps
- Latency: 120-170 ms (4K/60Hz), 80-110 ms (Full HD)
- Max. HDMI cable length: 5 m
- Supports up to 253 receiver units
- Protection against short circuit, overvoltage, ESD (electrostatic discharge)

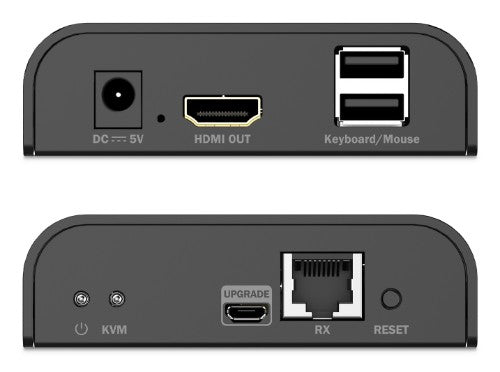

- Receiver unit connections (RX):
- 1x HDMI output (4K/60Hz) - Display connection
- 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection
- 2x USB-A (2.0) - connection mouse, keyboard, touch display
- 1x power supply connection (DC 5V/1A) - external power supply connection
- 1x Micro USB - FW Update Port
- 1x reset button
- 2x status LED
- Operating temperature: -20° - 60° C
- Power consumption: approx. 2.5 W
- Compression: H.265
- Dimensions: L 10.9 x W 8.95 x H 2.63 cm
- Weight: 243 g
- Housing: Metal
- Color: Black
Description
Expand the HDMI IP Extender Set (DS-55355) with additional receiver units (253 max.) to play your AV content on multiple displays at the same time- Expandable via IP: Expand the HDMI IP Extender Set (DS-55355) to up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Additional connectivity & control: KVM function for connecting mouse & keyboard as well as touch screen support on the receiver side
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 120-170 ms
- Supports CAT6 (or higher) network cables
Expand your existing HDMI IP Extender Set (DS-55355) with additional receiver units and experience a highly flexible and powerful AV solution. Thanks to point-to-multipoint technology, you can transmit content over IP to up to 253 displays - ideal for professional applications in corporate, educational or digital signage environments. Use your existing 1G network infrastructure to transmit signals over unlimited distances or use additional 1G network switches for cascaded expansion. For even more functionality, the receiver offers an integrated KVM function that enables mouse and keyboard connection as well as touch screen support - perfect for flexible control of the signal source. Enjoy outstanding picture quality with a razor-sharp UHD resolution of up to 4K/60Hz (4096x2160p) and a low latency of just 120-170 ms. The connection is made via CAT6 or higher network cables to ensure stable and reliable signal transmission. With the HDMI KVM IP Receiver (DS-55356), you get a scalable solution for professional use that combines maximum flexibility and outstanding performance.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 200 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| Easy to install | Yes |
| USB 2.0 ports quantity | 2 |
| USB data transfer rates | 480 Mbit/s |
| LED indicators | Yes |
| Maximum refresh rate | 60 Hz |
| Electrostatic Discharge (ESD) protection | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Receiver Micro-USB ports quantity | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB data transfer rates | 480 Mbit/s |
| USB port type | USB Type-A/Micro-USB |
| RJ-45 ports quantity | 1 |
| HDMI version | 2.0 |
| Power | |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (transmitter) (max) | 3.5 W |
| Power consumption (receiver) (max) | 2.5 W |
| DC-in jack | Yes |
| Weight & dimensions | |
| Receiver width | 8.95 cm |
| Receiver depth | 10.9 cm |
| Receiver height | 2.63 cm |
| Receiver weight | 243 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| AC adapter included | Yes |
| Cables included | USB |
| Quick installation guide | Yes |
| Other features | |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
