Description

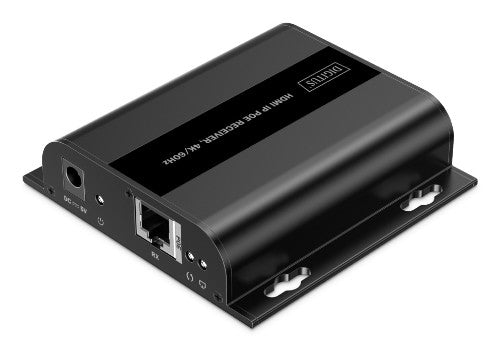

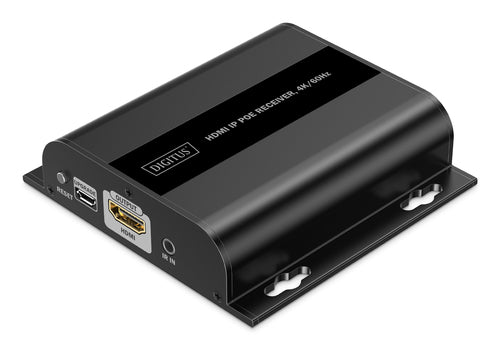

HDMI Receiver for DS-55353, 4K/60Hz 120/200 m, PoE, One-to-Many, CAT, Black
- Expandable via IP: Expand the HDMI IP Extender Set (DS-55353) to up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Outstanding image quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
- Flexible installation thanks to PoE support: Complete power supply via PoE network switch - no external power supply unit required
- IR interface enables remote control of the input source from the output screen
- Supports CAT6 (or higher) network cables
- Suitable for wall mounting
Expand your existing HDMI IP Extender Set (DS-55353) with additional receiver units and bring your AV content to up to 253 displays simultaneously - ideal for digital signage, conference rooms or large-scale presentations. Thanks to IP-based signal transmission via an existing 1G network infrastructure or additional 1G network switches, you can distribute content flexibly and over unlimited distances. The cascading option ensures maximum scalability and easy integration into your system. The receiver is powered via a PoE network switch, no external power supply is required, allowing for flexible installation. Enjoy razor-sharp images in UHD resolution of up to 4K/60Hz (4096x2160p) with a minimum latency of just 150-220 ms. The integrated IR interface enables remote control of the input source directly from the output screen, allowing you to conveniently manage your content. For a stable and reliable connection, we recommend the use of CAT6 or higher quality network cables. The receiver is also suitable for wall mounting, allowing for space-saving installation. Increase the efficiency of your AV solution with the HDMI IP Receiver 4K/60Hz - for impressive picture quality and maximum flexibility.
Key Features
- Max. Resolution: Ultra HD 4K/60Hz (4096x2160p)
- Max. Range point-to-multipoint connection: 120 m
- Max. Cascading range per section: 120 m
- Supports CAT6 or higher network cables
- HDMI 2.0
- HDCP 2.2 / 1.4
- Max. Video bandwidth: 18 Gbps
- Latency: 150-220 ms (4K/60Hz), 80-130 ms (Full HD)
- Max. HDMI cable length: 5 m
- Suitable for wall mounting
- Expansion to up to 253 receiver units
- Protection against short circuit, overvoltage, ESD (electrostatic discharge)

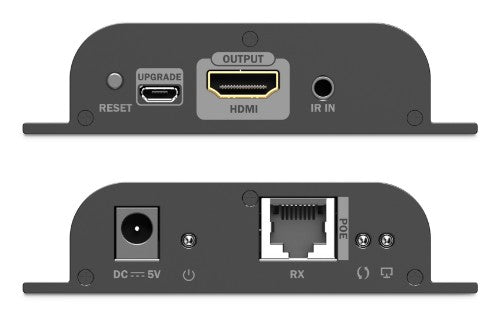

- Receiver unit connections (RX):
- 1x HDMI output (4K/60Hz) - Display connection
- 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection
- 1x IR input - forwarding of the IR signal
- 1x power supply connection (DC 5V/1A) - Only optional: connection of external power supply unit (not included)
- 1x Micro USB - FW Update Port
- 1x reset button
- 3x status LED
- Operating temperature: -20° - 60° C
- Power consumption: approx. 2.5 W
- Compression: H.265
- Dimensions: L 9.7 x W 9.4 x H 2.4 cm
- Weight: 164 g
- Housing: Metal
- Color: Black
Description
Expand the HDMI IP Extender Set (DS-55353) with additional receiver units (253 max.) to play your AV content on multiple displays at the same time- Expandable via IP: Expand the HDMI IP Extender Set (DS-55353) to up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Outstanding image quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
- Flexible installation thanks to PoE support: Complete power supply via PoE network switch - no external power supply unit required
- IR interface enables remote control of the input source from the output screen
- Supports CAT6 (or higher) network cables
- Suitable for wall mounting
Expand your existing HDMI IP Extender Set (DS-55353) with additional receiver units and bring your AV content to up to 253 displays simultaneously - ideal for digital signage, conference rooms or large-scale presentations. Thanks to IP-based signal transmission via an existing 1G network infrastructure or additional 1G network switches, you can distribute content flexibly and over unlimited distances. The cascading option ensures maximum scalability and easy integration into your system. The receiver is powered via a PoE network switch, no external power supply is required, allowing for flexible installation. Enjoy razor-sharp images in UHD resolution of up to 4K/60Hz (4096x2160p) with a minimum latency of just 150-220 ms. The integrated IR interface enables remote control of the input source directly from the output screen, allowing you to conveniently manage your content. For a stable and reliable connection, we recommend the use of CAT6 or higher quality network cables. The receiver is also suitable for wall mounting, allowing for space-saving installation. Increase the efficiency of your AV solution with the HDMI IP Receiver 4K/60Hz - for impressive picture quality and maximum flexibility.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 200 m |
| Supported video modes | 2160p |
| LED indicators | Yes |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP version | 1.4/2.2 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 200 m |
| Supported video modes | 2160p |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) input | 1 |
| USB ports quantity | 1 |
| USB connector type | Micro-USB |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (receiver) (max) | 2.5 W |
| Output current | 1 A |
| Operating voltage (receiver) | 5 V |
| External power adapter | Yes |
| Power source type | DC |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Receiver weight | 164 g |
| Receiver dimensions (WxDxH) | 94 x 97 x 24 mm |
| Package depth | 157 mm |
| Package width | 117 mm |
| Package height | 77 mm |
| Package weight | 330 g |
| Packaging data | |
| Package depth | 157 mm |
| Package width | 117 mm |
| Package height | 77 mm |
| Package weight | 330 g |
| Packaging content | |
| Cables included | IR |
| Quick start guide | Yes |
| AC adapter included | Yes |
