Description

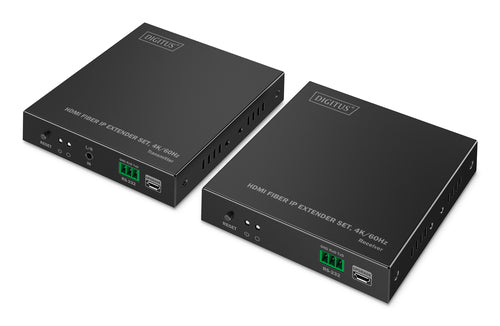

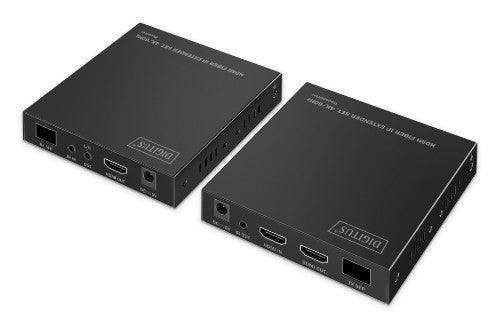

HDMI Fiber Extender Set 4K/60Hz, 40 km/300 m, Black
- Long range: AV signal transmission via fiber optic cable - singlemode up to 40 km, multimode up to 300 m - point-to-point connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of 1G network switches for signal transmission at unlimited distance possible - cascading
- SFP modules available separately (not included) - LC Singlemode (SM): DN-81002, LC Multimode (MM): DN-81000
- Wide compatibility: Supports LC & SC-SFP modules as well as singlemode and multimode fiber optic cables
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (3840x2160p) with low latency of 80-140 ms
- Additional audio output: 3.5 mm stereo connection for separate audio transmission
- HDMI Loop-Out: Connection of a local monitor to the transmitter unit (TX)
- IR interface enables remote control of the input source from the output screen
The HDMI Fiber IP Extender Set, 4K/60Hz is the ideal solution for high-quality HDMI signal transmission over long distances. It enables the transmission of UHD signals in 4K/60Hz (3840x2160p) with minimal latency of just 80-140 ms, so that content is reproduced in razor-sharp picture quality and with virtually no delay. Thanks to modern fiber optic technology, the system achieves a maximum transmission distance of up to 40 km in singlemode or up to 300 m in multimode, making it perfect for professional AV installations. By using existing 1G network infrastructures or additional 1G network switches, the extender set enables flexible and powerful signal transmission. In addition, the range can be extended as required by cascading, making unlimited distances possible. For additional flexibility, the system is compatible with LC & SC SFP modules as well as singlemode and multimode fiber optic cables. Suitable SFP modules are available separately (singlemode: DN-81002, multimode: DN-81000). In addition to the excellent picture quality, the extender set also offers separate audio output via a 3.5 mm stereo connection, which enables flexible sound transmission. An HDMI loop-out allows a local monitor to be connected directly to the transmitter unit (TX), while the integrated IR interface enables remote control of the input source from the output screen. With its long range, excellent picture quality and versatile expansion options, the HDMI Fiber IP Extender Set is the perfect choice for professional applications such as conference rooms, control centers, digital signage and broadcast studios.
Key Features
- Max. Resolution: Ultra HD 4K/60Hz (3840x2160p)
- Max. Range: Singlemode (SM) up to 40 km, multimode (MM) up to 300 m (point-to-point connection)
- HDMI 2.0
- HDCP 2.2 / 1.4
- Max. Video bandwidth: 18 Gbps
- Latency: 80-140 ms
- Max. HDMI cable length: 5 m
- Suitable for wall mounting
- Protection against short circuit, overvoltage, ESD (electrostatic discharge)

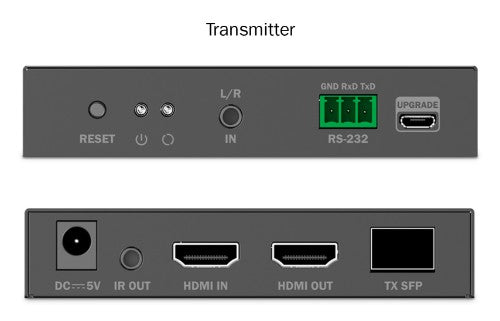

- Transmitter unit (TX) connections:
- 1x HDMI input (4K/60Hz) - Signal source connection
- 1x HDMI output (4K/60Hz) - local display connection
- 1x SFP output (LC, SC) - SFP module connection
- 1x IR output -reception of the IR signal
- 1x power supply connection (DC 5V/2A) - external power supply connection
- 1x RS232 Pass Trough - control of connected devices
- 1x Micro USB - FW Update Port
- 1x 3.5 mm stereo audio input - separate audio output
- 1x reset button
- 2x status LED

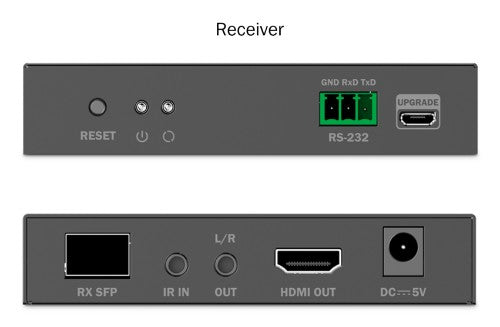

- Receiver unit connections (RX):
- 1x HDMI output (4K/60Hz) - Display connection
- 1x SFP input (LC, SC) - SFP module connection
- 1x IR input - forwarding of the IR signal
- 1x RS232 Pass Through - control of connected devices
- 1x 3.5 mm stereo audio output - separate audio output
- Operating temperature: -10° - 50° C
- Power consumption: TX approx. 7.5 W, RX approx. 7.5 W
- Dimensions (1 unit): L 10.6 x W 10.3 x H 2.6 cm
- Weight: TX 290 g, RX 286 g
- Housing: Metal
- Color: Black
Description
Enables HDMI signal transmission in UHD resolution (4K/60Hz) over a distance of up to 40 km (singlemode) / 300 m (multimode) in point-to-point connection- Long range: AV signal transmission via fiber optic cable - singlemode up to 40 km, multimode up to 300 m - point-to-point connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of 1G network switches for signal transmission at unlimited distance possible - cascading
- SFP modules available separately (not included) - LC Singlemode (SM): DN-81002, LC Multimode (MM): DN-81000
- Wide compatibility: Supports LC & SC-SFP modules as well as singlemode and multimode fiber optic cables
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (3840x2160p) with low latency of 80-140 ms
- Additional audio output: 3.5 mm stereo connection for separate audio transmission
- HDMI Loop-Out: Connection of a local monitor to the transmitter unit (TX)
- IR interface enables remote control of the input source from the output screen
The HDMI Fiber IP Extender Set, 4K/60Hz is the ideal solution for high-quality HDMI signal transmission over long distances. It enables the transmission of UHD signals in 4K/60Hz (3840x2160p) with minimal latency of just 80-140 ms, so that content is reproduced in razor-sharp picture quality and with virtually no delay. Thanks to modern fiber optic technology, the system achieves a maximum transmission distance of up to 40 km in singlemode or up to 300 m in multimode, making it perfect for professional AV installations. By using existing 1G network infrastructures or additional 1G network switches, the extender set enables flexible and powerful signal transmission. In addition, the range can be extended as required by cascading, making unlimited distances possible. For additional flexibility, the system is compatible with LC & SC SFP modules as well as singlemode and multimode fiber optic cables. Suitable SFP modules are available separately (singlemode: DN-81002, multimode: DN-81000). In addition to the excellent picture quality, the extender set also offers separate audio output via a 3.5 mm stereo connection, which enables flexible sound transmission. An HDMI loop-out allows a local monitor to be connected directly to the transmitter unit (TX), while the integrated IR interface enables remote control of the input source from the output screen. With its long range, excellent picture quality and versatile expansion options, the HDMI Fiber IP Extender Set is the perfect choice for professional applications such as conference rooms, control centers, digital signage and broadcast studios.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | Transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 40000 m |
| Supported video modes | 2160p |
| LED indicators | Yes |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Fiber optic connector | SFP |
| Fiber mode structure | Multi-mode, Single-mode |
| RS-232 pass-through | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP version | 1.4/2.2 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | Transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 40000 m |
| Supported video modes | 2160p |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 2 |
| Remote (IR) input | 2 |
| USB ports quantity | 2 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| USB connector type | Micro-USB |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Fiber optic connector | SFP |
| Fiber ports quantity | 2 |
| Power | |
| Power consumption (transmitter) (max) | 7.5 W |
| Power consumption (receiver) (max) | 7.5 W |
| Output current | 2 A |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| External power adapter | Yes |
| Power source type | DC |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Weight & dimensions | |
| Receiver weight | 286 g |
| Transmitter weight | 290 g |
| Transmitter dimensions (WxDxH) | 103 x 106 x 26 mm |
| Receiver dimensions (WxDxH) | 103 x 106 x 26 mm |
| Package depth | 240 mm |
| Package width | 176 mm |
| Package height | 80 mm |
| Package weight | 1.14 kg |
| Packaging data | |
| Package depth | 240 mm |
| Package width | 176 mm |
| Package height | 80 mm |
| Package weight | 1.14 kg |
| Packaging content | |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Cables included | IR |
| Quick start guide | Yes |
| AC adapter included | Yes |
