Description

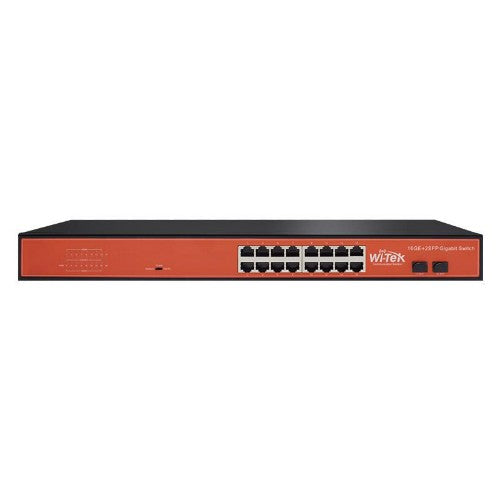

16x 100/1000Mbps RJ45 Ports, 2x 100/1000Mbps SFP Slots, 26.72Mpps, 440×140×45 mm
Full gigabit access, full-line speed forwarding
All ports support high-speed forwarding, user-flexibly flexible networking, to meet the needs of various scenarios networking, such as hotel, campus, factory dormitory and small and medium-sized enterprises.
Plug and play, no configuration required
A plug-and-play design lets administrators quickly connect the switch to devices with no hassles, no technician needed. Autonegotiation on each port senses and adjusts the link speed of a network intelligently to ensure an overall boost in performance and reliability. Convenient for wall-mounted, desktop and rack installations.
Long service Life with sturdy and durable mental shell
Wi-Tek Gigabit Ethernet Switches are protected by high-quality metal shell to ensure the long service life. They have passed a series of strict tests and provided you with reliable performance.
Environmentally friendly with your Ethernet
Wi-Tek Gigabit Ethernet Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length.
Description
Wi-Tek Gigabit Ethernet Switches provide an easy way to expand your wired network. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Featuring full duplex mode can send and receive data at a rate up to 1000Mbps, making it an ideal choice for expanding your high performance network.Full gigabit access, full-line speed forwarding
All ports support high-speed forwarding, user-flexibly flexible networking, to meet the needs of various scenarios networking, such as hotel, campus, factory dormitory and small and medium-sized enterprises.
Plug and play, no configuration required
A plug-and-play design lets administrators quickly connect the switch to devices with no hassles, no technician needed. Autonegotiation on each port senses and adjusts the link speed of a network intelligently to ensure an overall boost in performance and reliability. Convenient for wall-mounted, desktop and rack installations.
Long service Life with sturdy and durable mental shell
Wi-Tek Gigabit Ethernet Switches are protected by high-quality metal shell to ensure the long service life. They have passed a series of strict tests and provided you with reliable performance.
Environmentally friendly with your Ethernet
Wi-Tek Gigabit Ethernet Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| 10G support | No |
| Virtual LAN features | Port-based VLAN |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-LX, 1000BASE-X |
| Data transmission | |
| Jumbo frames | 10240 |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 26.72 Mpps |
| Design | |
| Product colour | Black, Orange |
| Stackable | No |
| Rack mounting | Yes |
| Certification | CE, FCC, RoHS |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 4 MB |
| Stackable | No |
| Power | |
| Power supply included | Yes |
| AC input voltage | 110 - 240 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 140 mm |
| Height | 45 mm |
| Weight | 1.6 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package width | 510 mm |
| Package depth | 220 mm |
| Package height | 90 mm |
| Package weight | 2.17 kg |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black, Orange |
| Stackable | No |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 4 MB |
| Certificates | |
| Certification | CE, FCC, RoHS |
