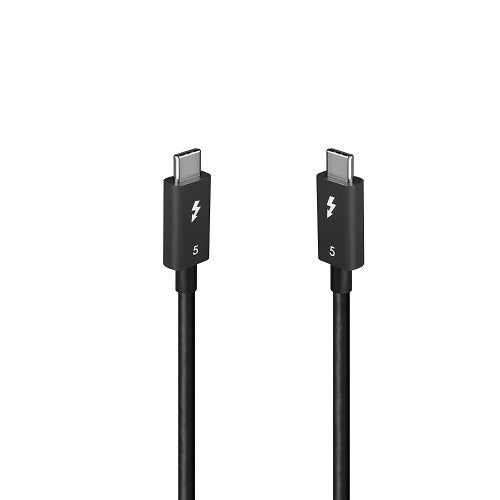

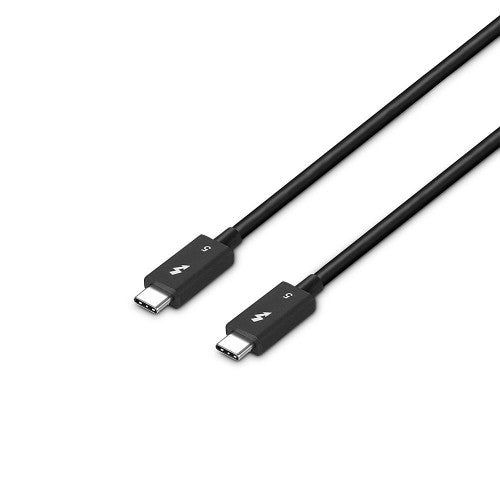

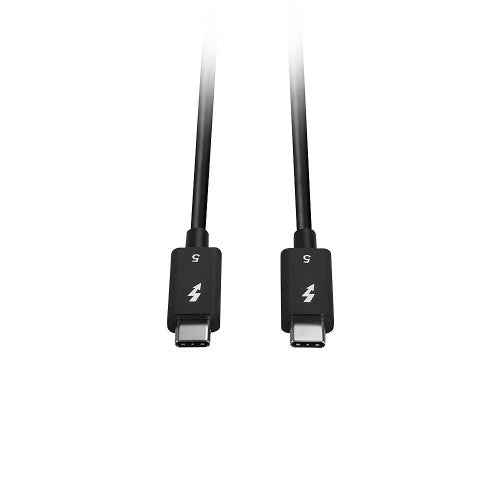

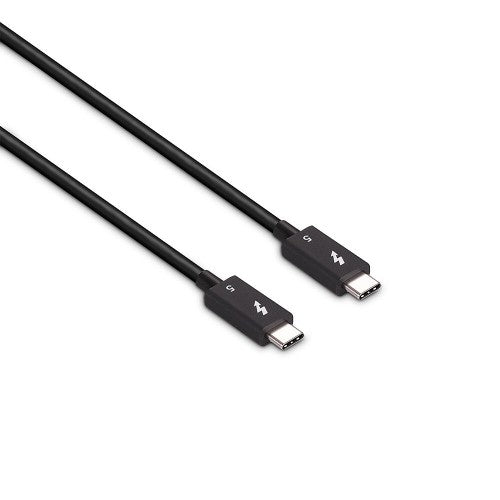

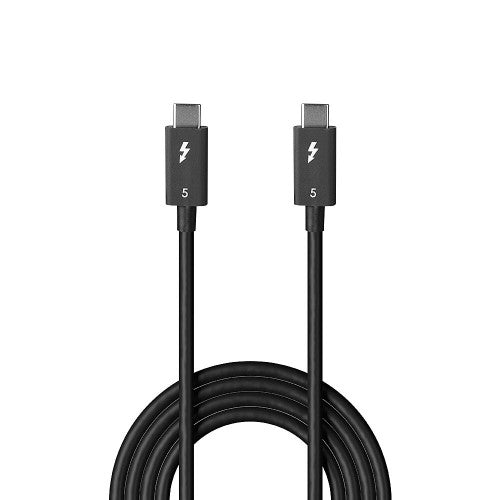

Lindy 1m Thunderbolt 5 Cable, 80Gbps, Passive

1m Thunderbolt 5 Cable, 80Gbps, Passive

Key Features

• Connects to Thunderbolt 5 devices and transfers data with bandwidths up to 80Gbps, with Bandwidth Boost mode supporting up to 120Gbps
• Supports multiple 8K displays or three 4K@144Hz displays
• Supports Power Delivery up to 240W (48V 5A)
• Supports PCIe Gen 4 at 64Gbps for storage speeds up to 6,000Mbps

Description

The Lindy 1m Thunderbolt 5 Cable provides the full Thunderbolt 5 specification with data transfer rates up to 80 Gbps in bi-directional mode, and up to 120 Gbps in Bandwidth Boost mode. It is backwards compatible with previous Thunderbolt versions and USB standards. It supports connecting multiple 8K displays, three 4K UHD displays at 144Hz, or a single display at up to 540Hz in Full HD for stunning contrast and color depth.

This cable is Thunderbolt certified and can provide up to 240W of power to Thunderbolt 5 and USB Type-C devices using the most efficient power delivery profiles. It utilizes the latest PAM-3 signaling technology to achieve these high speeds even with existing connectors and passive cables up to 1 meter in length.

Specifications

Features
Thunderbolt version	5
Maximum resolution	7680 x 4320 pixels
Connector 1	Male
Connector 2	Male
Product colour	Black
Cable length	1 m
Connector contacts plating	Nickel
Data transfer rate (max)	80 Gbit/s
Cable shape	Round
Conductor material	Copper
Certification	RoHS, REACH, California Proposition 65
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Certificates
Certification	RoHS, REACH, California Proposition 65
Compliance certificates	REACH, RoHS
Packaging data
Package type	Bag
Quantity per pack	1 pc(s)
Technical details
Connector 1	Male
Connector 2	Male
Product colour	Black
Cable length	1 m
Connector contacts plating	Nickel
Data transfer rate (max)	80 Gbit/s
Certification	RoHS, REACH, California Proposition 65
Compliance certificates	REACH, RoHS
