Description

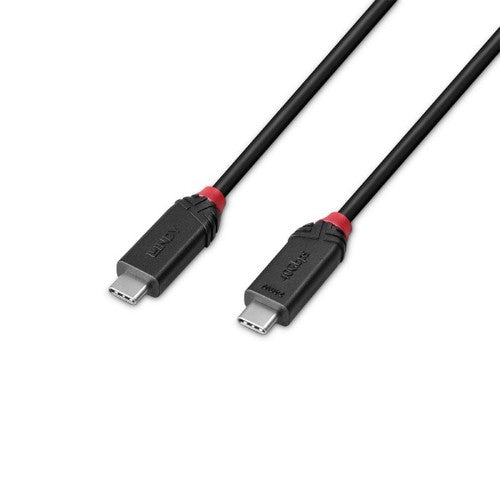

0.5m USB4 240W Type C Cable, Black Line
Black Line USB4 Type C to C cables feature triple shielded construction with copper conductors for premium performance and corrosion resistance. Nickel plated connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Key Features
- Entry level USB4 Gen 3x2 Type C to C cable for home and small office applications
- Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2 , USB 2.0 and Thunderbolt 3)
- Supports USB Power Delivery up to 240 Watt and DisplayPort 2.0 Alternate Mode with single 8K or dual 4K@60Hz
- Triple shielded cable, gold plated contacts and nickel plated connectors
Description
The Black Line USB4 Type C to C cables from Lindy's Cable Lines concept are perfect for home and small office use.Black Line USB4 Type C to C cables feature triple shielded construction with copper conductors for premium performance and corrosion resistance. Nickel plated connectors and gold plated contacts maintain signal integrity and reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| AWG wire size | 24/32 |
| USB version | USB4 Gen 3x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 0.5 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 40000 Mbit/s |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition 65 |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Copper |
| USB Power Delivery (USB PD) | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| USB Power Delivery up to | 240 W |
| USB Power Delivery revision | 3.1 |
| Connector material | Nickel |
| Connector shielding | Yes |
| Connector shield material | Copper |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Maximum data transfer rate | 40 Gbit/s |
| Cable diameter | 4.8 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Cable length | 0.5 m |
| Bend radius (min) | 2 cm |
| Connector 1 dimensions (WxDxH) | 34.8 x 12.7 x 7.4 mm |
| Connector 2 dimensions (WxDxH) | 34.8 x 12.7 x 7.4 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Ports & interfaces | |
| USB version | USB4 Gen 3x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 40000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Warranty period | 2 year(s) |
| Compliance certificates | REACH, RoHS |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
| Compliance certificates | REACH, RoHS |
| UN number | ` |
| Certification | |
| UN number | ` |
| Other features | |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Warranty period | 2 year(s) |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Warranty period | 2 year(s) |
