75", IPS, 3840 x 2160 / 60Hz, 500 cd/m2, 4 GB Ram, 32 GB Flash, Android 13, Wi-Fi 6, Bluetooth 5.1
Key Features
- Unified installation, the customised structure makes installation easy
- Unified coordination, supports digital signage, sleep, and wake-up functions
- Unified management, manage MeetingDisplay and MTR device on one platform (YMCS or YDMP)
- Unified configuration, one-touch console is enough
Description

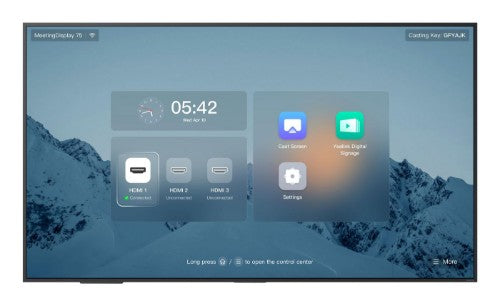

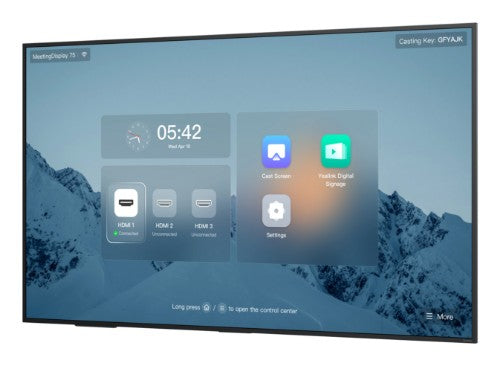

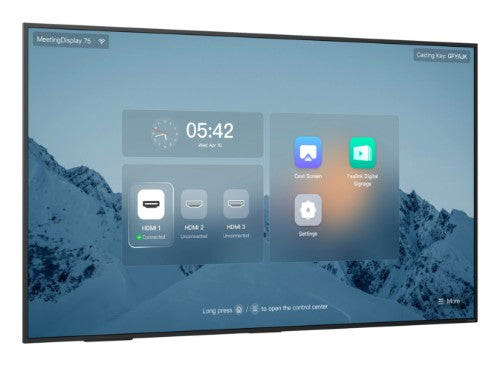

The Yealink MeetingDisplay is designed explicitly for the Yealink MTR system and can be paired with the MTR bar, UVC Camera, and MCore to provide the complete Yealink Meeting Solution. The MeetingDisplay is available in 65", 75", and 86" sizes, meeting the needs of small, medium, and large meeting rooms. The MeetingDisplay and MTR devices can be deployed, managed, and integrated in a unified manner. You can mount these MTR system devices on the MeetingDisplay without drilling or damaging the walls. The installation process will also be simple and convenient based on our uniquely designed structure. Moreover, the meeting solution, led by the MTR system, can be centrally managed via YMCS/YDMP. Finally, this solution allows MeetingDisplay and MTR devices to work in sync, including sleep/wake-up, power on/off, digital signage mode.
Specifications
| Display |
|---|
| Display diagonal |
165.1 cm (65") |
| Display technology |
IPS |
| Display resolution |
3840 x 2160 pixels |
| Aspect ratio |
16:9 |
| Viewing angle |
178° |
| Touchscreen |
Yes |
| Display brightness |
500 cd/m² |
| Contrast ratio (typical) |
1200:1 |
| Maximum refresh rate |
60 Hz |
| Anti-glare surface |
Yes |
| Design |
|---|
| Housing colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
600 x 400 mm |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| USB port |
Yes |
| Performance |
|---|
| RAM capacity |
4 GB |
| Storage capacity |
32000 MB |
| Operating system installed |
Android 13.0 |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Number of speakers |
2 |
| Speaker power |
12 W |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| USB port |
Yes |
| HDMI input ports quantity |
3 |
| RJ-45 ports quantity |
2 |
| USB 2.0 Type-A ports quantity |
2 |
| Power |
|---|
| Power source type |
AC |
| Input voltage |
100 - 240 V |
| Power consumption (idle) |
0.5 W |
| Weight & dimensions |
|---|
| Width |
1680 mm |
| Depth |
57 mm |
| Height |
959 mm |
| Weight |
28.4 kg |
| Packaging data |
|---|
| Package width |
1815 mm |
| Package depth |
185 mm |
| Package height |
1055 mm |
| Package weight |
38.7 kg |
| Package type |
Box |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Features |
|---|
| Built-in speaker(s) |
Yes |
