75" Interactive 4K UHD Touchscreen elevating interactive collaboration
Reasons To Buy
Google EDLA Certified
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.
iiyama DMS
iiyama DMS provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.
iiyama Share
Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.
iiWare 13E
Empower your presentations with iiWare 13E, featuring Google EDLA, iiyama DMS, iiyama Share, Note, Browser, Cloud Drive via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.
PureTouch-IR
Delivers 1mm Touch accuracy for the smoothest and fastest annotation with 40pt infrared Touch technology.
Multi-Window Mode
You can easily read and control your content when standing in front of your audience. Simply can drag and drop information between the apps. The windows are flexible, easy-to-use, designed specifically for large screen presentation and education.
Built-in speakers
The built-in front-facing speakers support conferencing configurations.
Standalone Solution
Unlock all of the security and flexibility of Windows IoT with the optional OPS Slot PC.
USB-C Connection
Delivers the latest in video, audio and Touch signal, all through one port and even charges your device with 65W power delivery.
Description

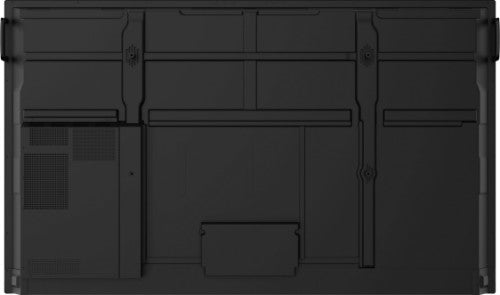

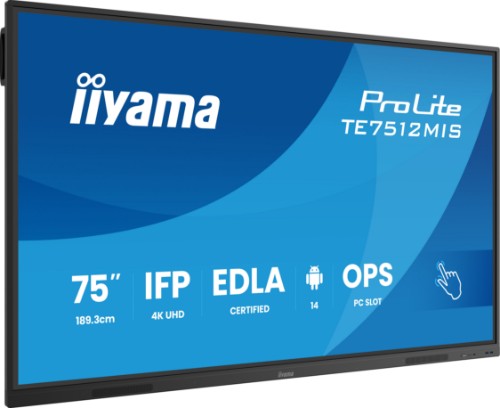

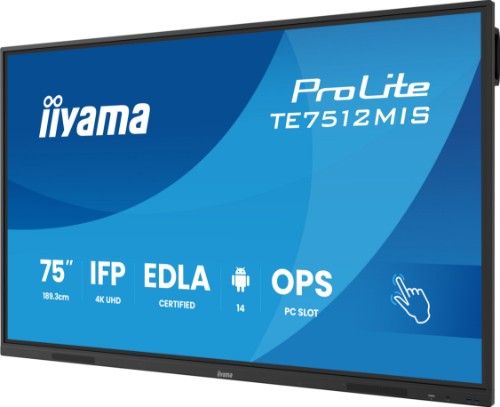

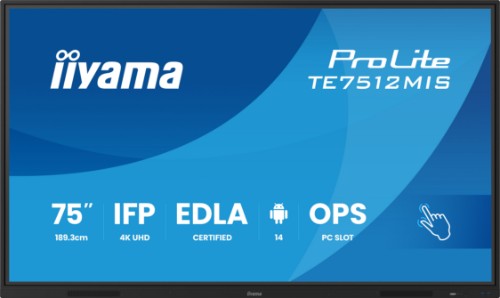

The TE7512MIS-B4AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD DLED screen eliminating parallax, accurate PureTouch-IR, iiWare 13E with Android 14, WiFi and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE7512MIS-B4AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Panel type |
VA |
| Display number of colours |
1.07 billion colours |
| Number of simultaneous touchpoints |
40 |
| LED backlighting type |
Direct-LED |
| Touchscreen |
Yes |
| Active display area (W x H) |
1650 x 928 mm |
| Display technology |
LCD |
| Display diagonal |
190.5 cm (75") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
400 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
6.5 ms |
| Contrast ratio (typical) |
5000:1 |
| Contrast ratio (dynamic) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.43 x 0.43 mm |
| Display diagonal (metric) |
189.3 cm |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 135 kHz |
| Anti-glare screen |
Yes |
| Touchscreen technology |
PureTouch-IR |
| Surface hardness |
7H |
| Multi-touch |
Yes |
| Glass thickness |
3 mm |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Remote (IR) input |
1 |
| DisplayPort version |
1.2 |
| USB port |
Yes |
| DisplayPorts in |
1 |
| HDMI version |
2.0 |
| RS-232C |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| PC Audio in |
Yes |
| DisplayPorts quantity |
1 |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN data rates |
1000 Mbit/s |
| VGA (D-Sub) input ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
5 |
| OPS module slot |
Yes |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
65 W |
| Audio Return Channel (ARC) |
Yes |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
32 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Interactive flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal |
| Housing material |
Metal |
| Bezel width (top) |
1.65 cm |
| Bezel width (side) |
1.65 cm |
| Bezel width (bottom) |
4.5 cm |
| Product colour |
Black |
| Panel mounting interface |
800 x 400 mm |
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Mounting type |
Wall |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Mean time between failures (MTBF) |
50000 h |
| On Screen Display (OSD) languages |
Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
14 |
| HDCP |
Yes |
| Plug and Play |
Yes |
| HDCP version |
2.2 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (off) |
0.3 W |
| Power consumption (typical) |
174 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
174 kWh |
| Computer system |
|---|
| Computer system |
Yes |
| Processor family |
ARM Cortex |
| Operating system installed |
Android |
| Internal memory |
8 GB |
| Internal storage capacity |
128 GB |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A53+Cortex-A72 |
| Operating system version |
14 |
| Weight & dimensions |
|---|
| Display width |
1709 mm |
| Display depth |
98 mm |
| Display height |
1020 mm |
| Display weight |
39 kg |
| Packaging data |
|---|
| Package width |
1863 mm |
| Package depth |
1863 mm |
| Package height |
1148 mm |
| Package weight |
51.5 kg |
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, HDMI, RS-232 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, HDMI, RS-232 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Certification |
CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Power supply type |
Internal |
| Panel type |
VA |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| Number of simultaneous touchpoints |
40 |
| LED backlighting type |
Direct-LED |
| OPS slot |
1 |
| Warranty period |
5 year(s) |
| Compliance certificates |
RoHS |
| Thin Client |
|---|
| Processor family |
ARM Cortex |
| Operating system installed |
Android |
| Internal memory |
8 GB |
| Internal storage capacity |
128 GB |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Power supply type |
Internal |
| Panel type |
VA |
| DisplayPort version |
1.2 |
| Housing material |
Metal |
| DisplayPorts in |
1 |
| Number of simultaneous touchpoints |
40 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Mean time between failures (MTBF) |
50000 h |
| Headphone outputs |
1 |
| Headphone connectivity |
3.5 mm |
| Display technology |
LCD |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Bezel width (top) |
1.65 cm |
| Bezel width (side) |
1.65 cm |
| Bezel width (bottom) |
4.5 cm |
| Backlight type |
Direct LED |
| Audio output |
3.5mm |
| Quick start guide |
Yes |
| Plug and Play |
Yes |
| Energy efficiency scale |
A to G |
| OPS module slot |
Yes |
