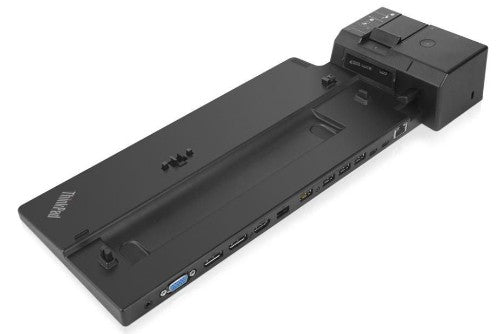

ThinkPad Ultra Docking Station
Description
ThinkPad Docking Stations provide the best docking experience for large enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make it easy to back and go. Designed for large enterprise environments, ThinkPad Docking Stations support PXE book, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly designed extensively tested, ThinkPad Docking Stations provide a seamless docking experience.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
0 |
| DC-in jack |
Yes |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product colour |
Black |
| Card reader integrated |
No |
| Brand compatibility |
Lenovo |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Technical details |
|---|
| Product colour |
Black |
| Brand compatibility |
Lenovo |
| Cable lock slot |
Yes |
| Harmonized System (HS) code |
84733020 |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
8 - 95% |
| Weight & dimensions |
|---|
| Weight |
810 g |
| Width |
159 mm |
| Depth |
378 mm |
| Height |
54.1 mm |
| Package weight |
2 kg |
| Package width |
200 mm |
| Package depth |
422 mm |
| Package height |
86 mm |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Package weight |
2 kg |
| Package width |
200 mm |
| Package depth |
422 mm |
| Package height |
86 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
