Description

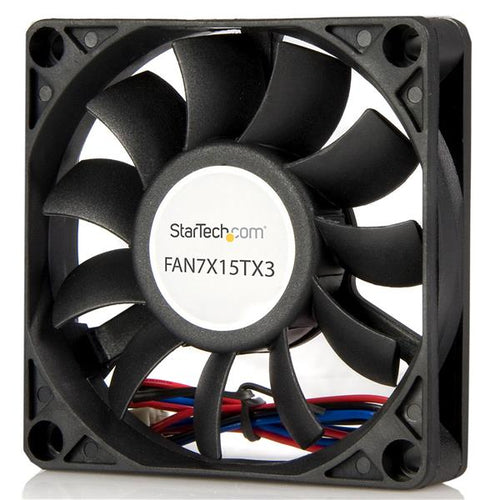

StarTech.com 70x15mm Replacement Ball Bearing Computer Case Fan w/ TX3 Connector - 3 pin case Fan - TX3 Fan - 70mm Fan
This versatile 70mm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
The fan can be used to replace the fan component of some CPU coolers or mounted to the side panel of a computer case and features a tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status information.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Description
Add additional chassis cooling with a 70mm ball bearing fanThis versatile 70mm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
The fan can be used to replace the fan component of some CPU coolers or mounted to the side panel of a computer case and features a tachometer pin on the TX3 motherboard connector that provides the host system with fan operating status information.
The StarTech.com Advantage
- A dual ball bearing design ensures reliability and longer life
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Rotational speed (max) | 3500 RPM |
| Noise level (high speed) | 34 dB |
| Type | Fan |
| Operating temperature (T-T) | -10 - 70 °C |
| Fan diameter | 7 cm |
| Maximum airflow | 29.58 cfm |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 50000 h |
| Design | |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Product colour | Black |
| Certification | RoHS |
| Technical details | |
| Noise level (high speed) | 34 dB |
| Type | Fan |
| Fan diameter | 7 cm |
| Maximum airflow | 29.58 cfm |
| Number of fans | 1 fan(s) |
| Material | Plastic |
| Connector(s) | 1 - TX3 Female |
| Compliance certificates | RoHS |
| Power | |
| Voltage | 12 V |
| Rated current | 0.18 A |
| Power consumption (typical) | 3.12 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 143 mm |
| Package width | 96 mm |
| Package height | 32 mm |
| Width | 15 mm |
| Package weight | 75 g |
| Depth | 70 mm |
| Height | 70 mm |
| Weight | 38 g |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Packaging data | |
| Package depth | 143 mm |
| Package width | 96 mm |
| Package height | 32 mm |
| Package weight | 75 g |
| Certificates | |
| Certification | RoHS |
| Other features | |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Rotational speed | 3500 RPM |
| Dimensions (WxDxH) | 10 x 60 x 60 mm |
| Connector(s) | 1 - TX3 Female |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
