StarTech.com USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, Aluminum Heatsink Case, B+M/M-Key

StarTech.com USB4 M.2 NVMe Enclosure, 40Gbps, External USB-C/Thunderbolt NVMe SSD Enclosure, Aluminum Heatsink Case, B+M/M-Key

Key Features

• Next-Gen Performance: Transform your M.2 NVMe SSD into an ultra-fast external storage solution, delivering up to 40Gbps via a USB4 or Thunderbolt host; Ideal for IT technicians and professionals requiring fast, dependable SSD access
• Stays Cool Under Load: Rugged aluminum heatsink enclosure with a high-performance thermal pad for effective heat dissipation; Maintains consistent SSD speeds under sustained load, supporting extended data transfers without active cooling
• Broad Drive Compatibility: Easily access, transfer, or back up data using 2230/2242/2260/2280 M.2 NVMe PCIe SSDs, including Samsung 960/970/980/990/9100, Kingston, Seagate, Western Digital (WD), Crucial, and Intel; NOTE: M.2 SATA drives not supported
• Broad USB-C Compatibility: Connect the NVMe enclosure with the included USB-C cable to a USB4, Thunderbolt 5/4/3, or USB 10Gbps host for seamless, driverless operation across macOS, Windows and Linux systems with USB-C ports
• The IT Pro's Choice: Our hard drive enclosures are lab-tested for enterprise-grade performance, thermal efficiency, and OS compatibility; Ideal for secure backups and drive upgrades; Backed by free lifetime 24/5 multi-lingual technical assistance

Description

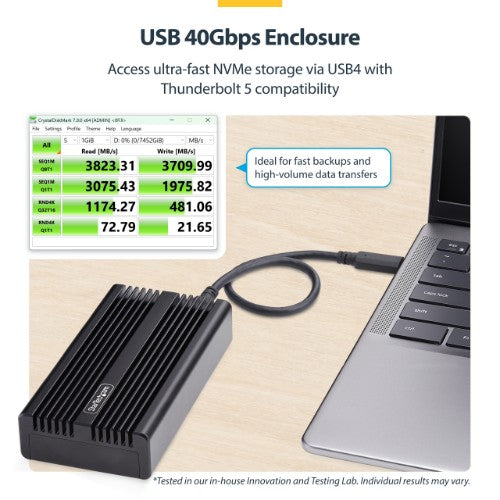

Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility

Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.

Versatile USB-C & Thunderbolt Support

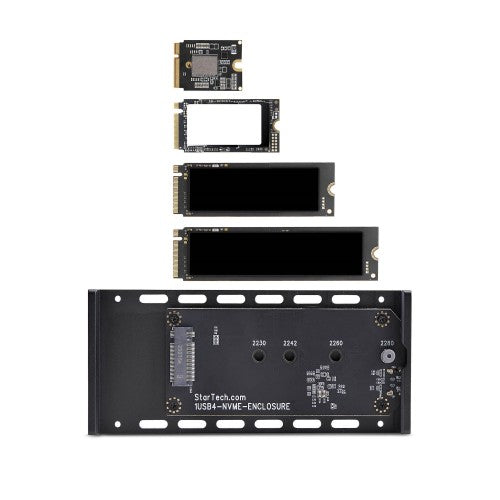

Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.

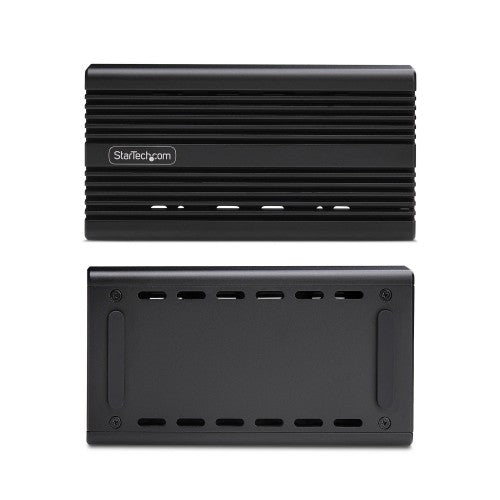

Robust Heat Dissipation

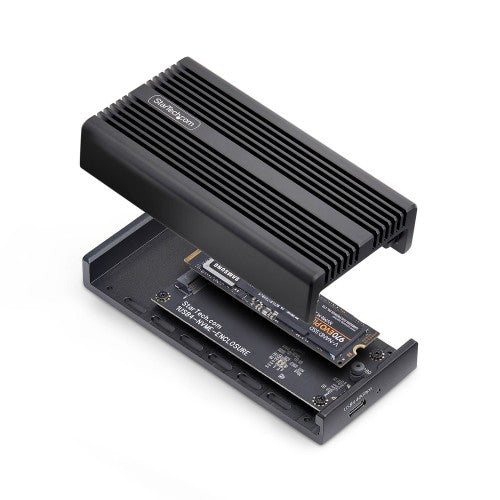

The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.

Compact and Durable

The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.

Specifications

Storage
Number of storage drives supported	1
Storage drive size	M.2
Supported storage drive interfaces	PCI Express
Supported storage drive heights	22 mm
Supported storage drive lengths	30,42,60,80 mm
NVMe	Yes
Ports & interfaces
USB version	USB4 Gen 4
USB connectivity	Yes
USB connector type	USB Type-C
USB connector gender	Female
USB ports quantity	1
Integrated USB cable	No
Technical details
Plug and Play	Yes
Number of fans	0 fan(s)
Material	Aluminium
LED indicators	Yes
Data transfer rate	40 Gbit/s
Product colour	Black
Chipset	ASMedia - ASM2464PD
Cable length	0.3 m
USB version	USB4 Gen 4
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Design
Product type	SSD enclosure
Number of fans	0 fan(s)
Material	Aluminium
LED indicators	Yes
Product colour	Black
Cable length	0.3 m
Performance
Plug and Play	Yes
Data transfer rate	40 Gbit/s
Chipset	ASMedia - ASM2464PD
Power
Power source type	USB
Packaging data
Package weight	430 g
Package width	190 mm
Package depth	114 mm
Package height	35 mm
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	340 g
Width	65 mm
Depth	124.8 mm
Height	28.8 mm
Package weight	430 g
Cable length	0.3 m
Package width	190 mm
Package depth	114 mm
Package height	35 mm
Packaging content
Manual	Yes
Screwdriver included	Yes
Cables included	USB Type-C to USB Type-C
Logistics data
Master (outer) case width	395 mm
Master (outer) case length	200 mm
Master (outer) case height	260 mm
Products per master (outer) case	20 pc(s)
