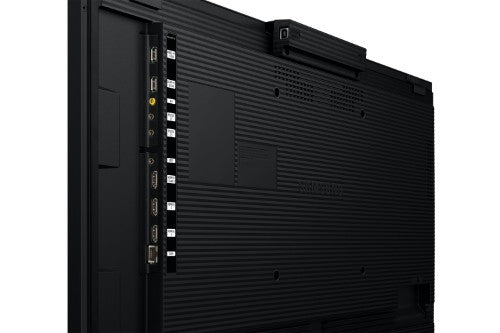

Samsung QM32C-T, Digital signage flat panel, 81.3 cm (32"), LCD, 1920 x 1080 pixels, Wi-Fi, 16/7
Description
Samsung QM32C-T. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 7.0. Product colour: Black
Specifications
| Display |
|---|
| Panel type |
VA |
| Dynamic contrast ratio marketing name |
Mega Contrast |
| Touchscreen |
Yes |
| Display technology |
LCD |
| Display diagonal |
81.3 cm (32") |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
400 cd/m² |
| HD type |
Full HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.3637 x 0.3637 mm |
| Vertical scan range |
48 - 75 Hz |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
30 - 81 kHz |
| Touchscreen technology |
Capacitive |
| Colour saturation |
72% |
| Haze rate |
2% |
| Pixel frequency (max) |
148.5 MHz |
| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| USB port |
Yes |
| HDMI version |
1.4 |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
0 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| USB ports quantity |
2 |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Product colour |
Black |
| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
16/7 |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Computer system |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Weight & dimensions |
|---|
| Display width |
744.4 mm |
| Display depth |
48.2 mm |
| Display height |
444.6 mm |
| Display weight |
8.3 kg |
| Packaging data |
|---|
| Package width |
872 mm |
| Package depth |
565 mm |
| Package height |
133 mm |
| Package weight |
11 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| Panel type |
VA |
| RS-232 output ports |
1 |
| RS-232 input ports |
1 |
| Compliance certificates |
Electromagnetic Compatibility (EMC) |
| Network |
|---|
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Thin Client |
|---|
| Operating system installed |
Tizen 7.0 |
| Internal storage capacity |
8 GB |
| Other features |
|---|
| Panel type |
VA |
| RS-232 output ports |
1 |
| RS-232 input ports |
1 |
| Wi-Fi |
Yes |
| Display technology |
LCD |
| Bluetooth |
Yes |
| Audio output |
1 |
