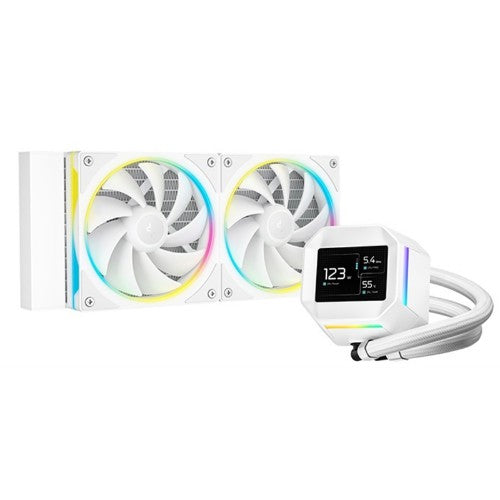

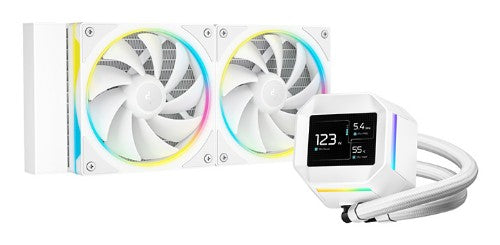

DeepCool LM240 WH, Liquid cooling kit, 12 cm, White
Description
DeepCool LM240 WH. Type: Liquid cooling kit, Fan diameter: 12 cm, Maximum air pressure: 3.27 mmH2O, Bearing type: Hydraulic. Product colour: WhiteSpecifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 66.23 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Number of fans | 2 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 9 |
| Pump connector | 4-pin |
| Fan noise level (max) | 36.07 dB |
| Pump motor speed (min) | 2500 RPM |
| Pump motor speed (max) | 3400 RPM |
| Fan speed (min) | 400 RPM |
| Fan speed (max) | 2400 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 2 fan(s) |
| Product colour | White |
| Illumination LED | Yes |
| Number of fan blades | 9 |

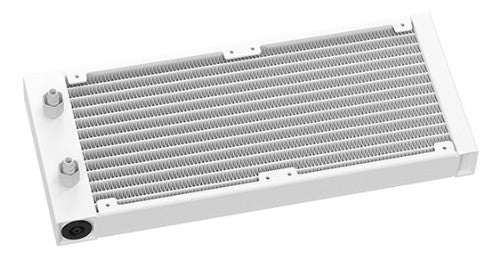

| Radiator material | Aluminum |
| Display type | IPS |
| LED connector type | 3-pin |
| Technical details | |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 66.23 cfm |
| Maximum air pressure | 3.27 mmH2O |
| Number of fans | 2 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Pump connector | 4-pin |
| Power | |
| LED voltage | 5 V |
| Fan power consumption | 2.16 W |
| Pump power consumption | 3.48 W |
| Pump voltage | 12 V |
| Pump current | 290 mA |
| Fan voltage | 12 V |
| Fan current | 0.18 A |
| LED power consumption (pump) | 1.5 W |
| LED power consumption (fan) | 3.5 W |
| Colour | |
| Product colour | White |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.4 kg |
| Radiator width | 12 cm |
| Radiator depth | 28.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 8 cm |
| Pump depth | 9 cm |
| Pump height | 6.3 cm |
| Packaging data | |
| Package type | Box |

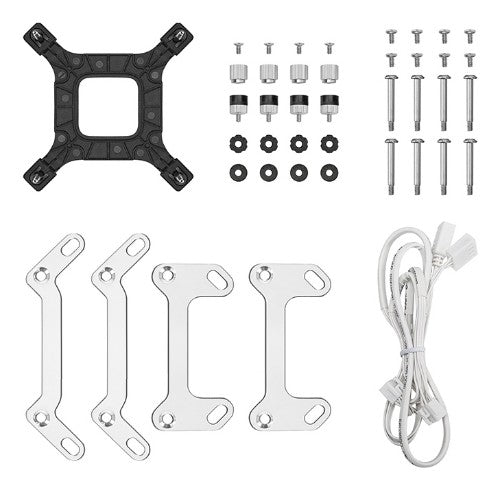

| Packaging content | |
| Screws included | Yes |
| Cables included | 3-pin, 4-pin |
| Package type | Box |
| Mounting kit | Yes |
| CPU socket spacer(s) | Yes |
| CPU bracket(s) | Yes |
| Other features | |
| Pump connector | 4-pin |
| LED voltage | 5 V |
