Description

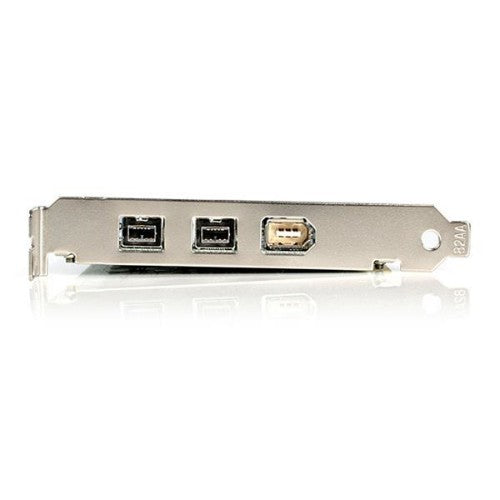

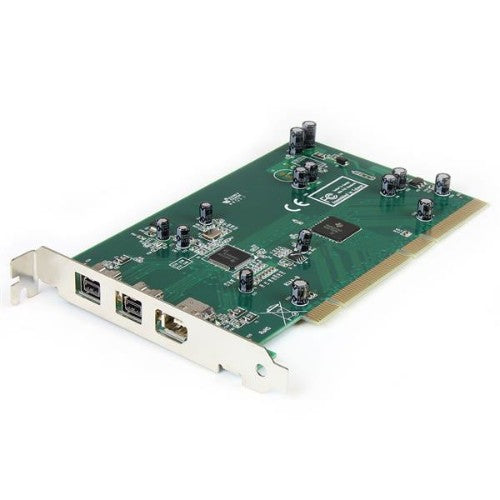

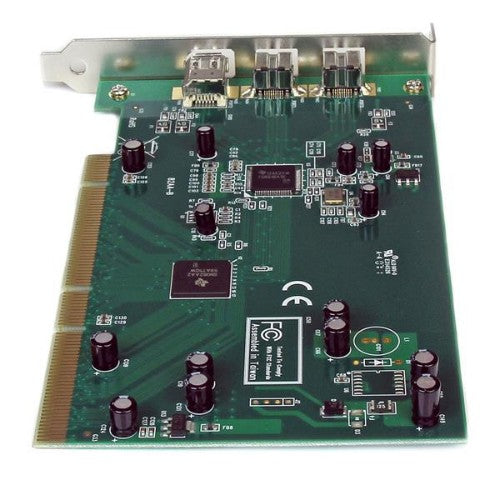

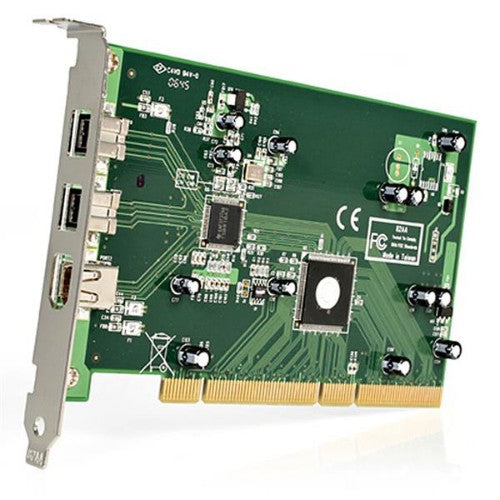

StarTech.com 3 Port 2b 1a PCI 1394b FireWire Adapter Card with DV Editing Kit
A versatile FireWire solution, the adapter card works in both 5v and 3.3v PCI slots and in 64-bit and 32-bit operating environments, making it easy to create a high-speed laptop digital media center, or connect demanding FireWire peripheral devices such as portable hard drives, DV camcorders, digital cameras and CD-RW/DVD-RW drives.
This high quality adapter card is designed to provide reliable FireWire 800 and FireWire 400 connections, delivering 800 Mbps and 400 Mbps data transfer rates respectively (a 64-bit PCI slot is required to achieve 800 Mbps data transfer rates).
The PCI1394B_3 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Add both 9-pin and 6-pin FireWire ports from a single card with data transfer speeds up to 800Mbps and 400Mbps respectively

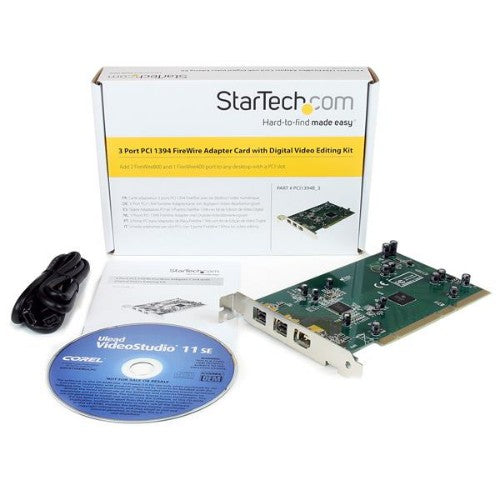

- Includes a Digital Video Editing kit to get started importing video right out of the box
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
Description
The PCI1394B_3 3-Port PCI FireWire Adapter Card turns a PCI slot into 2 FireWire 800 (IEEE 1394b) ports and 1 FireWire 400 (IEEE 1394a) port - a cost-effective solution that lets you connect FireWire 800 devices, as well as older FireWire 400 devices to your desktop computer.A versatile FireWire solution, the adapter card works in both 5v and 3.3v PCI slots and in 64-bit and 32-bit operating environments, making it easy to create a high-speed laptop digital media center, or connect demanding FireWire peripheral devices such as portable hard drives, DV camcorders, digital cameras and CD-RW/DVD-RW drives.
This high quality adapter card is designed to provide reliable FireWire 800 and FireWire 400 connections, delivering 800 Mbps and 400 Mbps data transfer rates respectively (a 64-bit PCI slot is required to achieve 800 Mbps data transfer rates).
The PCI1394B_3 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Add both 9-pin and 6-pin FireWire ports from a single card with data transfer speeds up to 800Mbps and 400Mbps respectively
- Includes a Digital Video Editing kit to get started importing video right out of the box
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
| Output interface | IEEE 1394/Firewire |
| Expansion card standard | PCI 2.2 |
| Technical details | |
| Plug and Play | Yes |
| Chipset | Texas Instruments - 3AA651W |
| Data transfer rate (max) | 0.8 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Hot-swap | Yes |
| Plug and Play | Yes |
| Chipset | Texas Instruments - 3AA651W |
| Data transfer rate (max) | 0.8 Gbit/s |
| Product colour | Green, Stainless steel |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | CE, FCC, UL |
| Colour | |
| Product colour | Green, Stainless steel |
| Design | |
| Hot-swap | Yes |
| Internal | Yes |
| Product colour | Green, Stainless steel |
| Certification | CE, FCC, UL |
| Features | |
| Plug and Play | Yes |
| Chipset | Texas Instruments - 3AA651W |
| Data transfer rate (max) | 0.8 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.2 Jaguar |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 167 mm |
| Height | 99 mm |
| Weight | 89 g |
| Package width | 40 mm |
| Package depth | 212 mm |
| Package height | 144 mm |
| Package weight | 290 g |
| Packaging data | |
| Manual | Yes |
| Drivers included | Yes |
| Package width | 40 mm |
| Package depth | 212 mm |
| Package height | 144 mm |
| Package weight | 290 g |
| Cables included | FireWire |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| Cables included | FireWire |
| Other features | |
| Chipset | Texas Instruments - 3AA651W |
