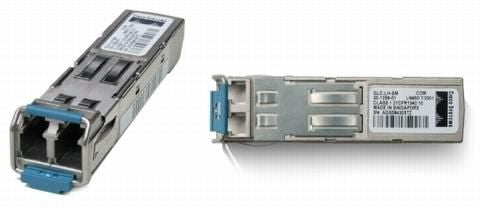

1000BASE-SX SFP Transceiver Module MMF, 850-nm Wavelength, Industrial Temperature Range
Description
The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
1000BASE-SX SFP for Multimode Fiber Only
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m.
Specifications
| Technical details |
|---|
| Maximum transfer distance |
550 m |
| Plug and Play |
Yes |
| Harmonized System (HS) code |
85176990 |
| Performance |
|---|
| Plug and Play |
Yes |
| Maximum transfer distance |
550 m |
| Network |
|---|
| Cabling technology |
1000BASE-SX |
| Maximum data transfer rate |
1000 Mbit/s |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Management features |
|---|
| Plug and Play |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Other features |
|---|
| Cabling technology |
1000BASE-SX |
| Interface |
SFP |
| Connector(s) |
LC/PC |
| Fiber type |
MMF |
