DLP, OSRAM, 1024 x 768, 4:3, 3500 lm, 270 W
Description
Acer’s Education Series projectors portray clear, large images from either a distance, or when positioned conveniently close to the projection screen. This makes them ideal for use in education facilities or any smaller space. Their high resolution makes for clear and detailed big screen images, while color enhancement features deliver vivid hues.
Specifications
| Projector |
|---|
| Number of colours |
1.073 billion colours |
| Projector native resolution |
XGA (1024x768) |
| Native aspect ratio |
4:3 |
| Supported aspect ratios |
4:3, 16:9 |
| Projection distance |
0.4 - 3.8 m |
| Contrast ratio (typical) |
20000:1 |
| Zoom capability |
Yes |
| Vertical synchronization (min) |
0.024 kHz |
| Vertical synchronization (max) |
0.12 kHz |
| Keystone correction, vertical |
-15 - 15° |
| Keystone correction, horizontal |
-10 - 10° |
| Horizontal synchronization (min) |
15 kHz |
| Horizontal synchronization (max) |
100 kHz |
| Projection technology |
DLP |
| Projector brightness |
3500 ANSI lumens |
| Projection modes |
Ceiling, Front, Rear |
| Lamps |
|---|
| Lamp type |
OSRAM |
| Lamps quantity |
1 lamp(s) |
| Lamp power |
220 W |
| Service life of light source |
5000 h |
| Service life of light source (economic mode) |
6000 h |
| Light source |
|---|
| Lamp type |
OSRAM |
| Lamps quantity |
1 lamp(s) |
| Lamp power |
220 W |
| Service life of light source |
5000 h |
| Service life of light source (economic mode) |
6000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Throw ratio |
0.62 (1955.80 mm@970 mm) |
| Video |
|---|
| Analog signal format system |
NTSC, PAL, SECAM |
| Full HD |
No |
| Supported graphics resolutions |
1024 x 768 (XGA), 1920 x 1200 (WUXGA) |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
16 W |

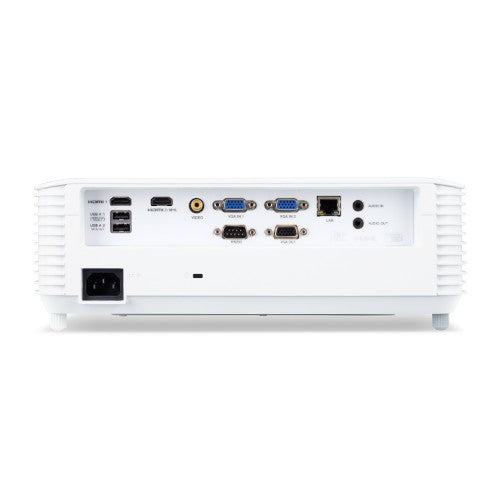

| Ports & interfaces |
|---|
| Mobile High-Definition Link (MHL) |
No |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Composite video in |
1 |
| Audio (L/R) in |
1 |
| Audio (L/R) out |
1 |
| Serial interface type |
RJ-45 |
| DVI port |
No |
| Network |
|---|
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
|---|
| Card reader integrated |
No |
| Technical details |
|---|
| Product colour |
White |
| Projection modes |
Ceiling, Front, Rear |
| Lamp power |
220 W |
| Features |
|---|
| Projection modes |
Ceiling, Front, Rear |
| Compatible operating systems |
Mac
Windows |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
1 |
| RMS rated power |
16 W |
| Design |
|---|
| Product type |
Ceiling-mounted projector |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Placement |
Ceiling |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input voltage |
120 - 230 V |
| Power source |
AC |
| Power consumption (typical) |
270 W |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Supplier features |
|---|
| Harmonized System (HS) code |
85286200 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
3.1 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, VGA |
| Batteries included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85286200 |
