Description

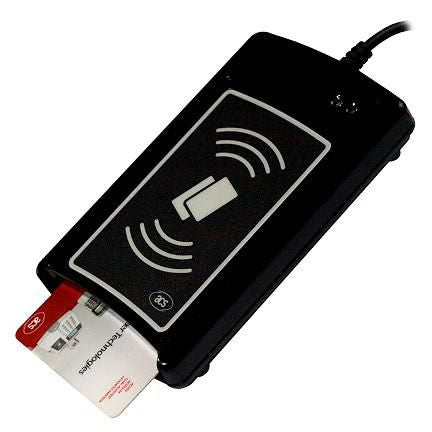

ACR1281S-C1 DualBoost II, RS-232, DB-9, T=0; T=1, 120.5 x 72 x 20.4 mm, 150 g
The ACR1281S-C1 is a plug and play device that does not require any driver installation. It comes with a built-in SAM slot for added security in both contact and contactless applications. Lastly, the ACR1281S-C1 makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications.
With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281S-C1 Serial DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.
Key Features
- Serial RS232 Interface
- USB interface for power supply
- CCID-like frame format (binary format)
- Read/write speed of up to 848 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Part 4 Type A and B cards and MIFARE® series
- Built-in anti-collision feature (only one tag is accessed at any time)
- Supports extended APDU (max. 64 kbytes)
- Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- ISO 7816 compliant SAM slot
- Two user-controllable LEDs
- User-controllable buzzer
- USB Firmware Upgradability
Description
ACR1281S-C1 DualBoost II is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281S-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for banking or e-commerce to settle payments or other transactions securely using credit cards, and it for verifying contactless cards to provide access to specific areas or workstations. It provides the perfect complement to the all-in-one card concept that combines many kinds of smart card applications in just a single card.The ACR1281S-C1 is a plug and play device that does not require any driver installation. It comes with a built-in SAM slot for added security in both contact and contactless applications. Lastly, the ACR1281S-C1 makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications.
With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281S-C1 Serial DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.
Specifications
| Features | |
|---|---|
| Compliance industry standards | ISO 14443 A & B Parts 1-4 ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Product colour | Black |
| Cable length | 1.5 m |
| Software upgradeable | Yes |
| Product type | Universal smart card reader |
| Application area | Access control, Banking & payments, Healthcare |
| Certificates | |
| Certification | ISO 14443 ISO 7816 CE FCC RoHS |
| Technical details | |
| Supported protocols | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL |
| Compliance industry standards | ISO 14443 A & B Parts 1-4 ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Product colour | Black |
| Cable length | 1.5 m |
| Design | |
| Product colour | Black |
| Cable length | 1.5 m |
| Ports & interfaces | |
| Supported protocols | ISO 14443-4 Compliant Card, T=CL MIFARE® Classic Card, T=CL |
| Compliance industry standards | ISO 14443 A & B Parts 1-4 ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) |
| Interface | RS-232 |
| Colour | |
| Product colour | Black |
| Power | |
| Operating voltage | 5 V |
| Power source | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 72 mm |
| Height | 120.5 mm |
| Depth | 20.4 mm |
| Weight | 150 g |
| Sustainability | |
| Certification | ISO 14443 ISO 7816 CE FCC RoHS |
