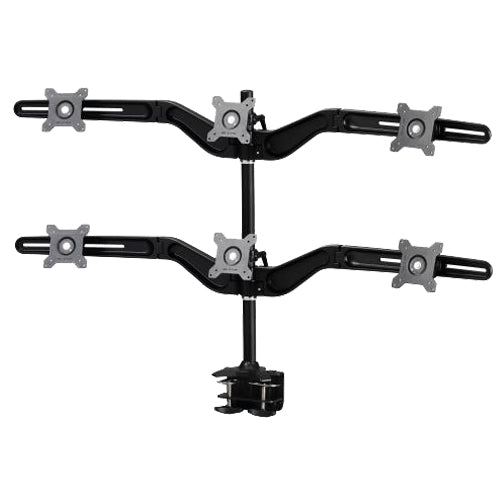

AMR6C Hex Monitor Clamp Mount
Description
This 6-panel monitor stand allows the connection of flat panel monitors through standard VESA mounting brackets. Our revolutionary hinge modules are designed to enable display monitors to be rotated, swiveled and tilted. The engineering of the AMR6C is designed to meet high ergonomic expectation conserving space and not compromising the aesthetics of the design. The AMR6C is constructed with aluminum alloy to insure sturdiness and allow for the mounting of individual monitors that weight 6kg (13.2 Lbs). In addition to these features, the device is also compatible with VESA 100×100/75X75 and suitable for monitor sizes 15” to 24”.
Specifications
| Mounting |
|---|
| Minimum screen size |
38.1 cm (15") |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Number of displays supported |
6 |
| Mounting type |
Desk |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Mounting |
Clamp |
| Maximum weight capacity |
6 kg |
| Maximum screen size |
61 cm (24") |
| Ergonomics |
|---|
| Swivel angle range |
-20 - 20° |
| Tilt angle range |
-20 - 20° |
| Angle of rotation |
360° |
| Design |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Mounting type |
Desk |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
1300 mm |
| Depth |
144 mm |
| Height |
763 mm |
| Weight |
10.8 kg |
| Other features |
|---|
| Mounting type |
Desk |
| Mounting |
Clamp |
