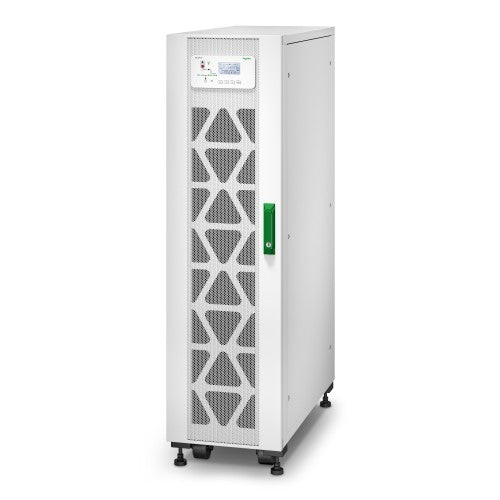

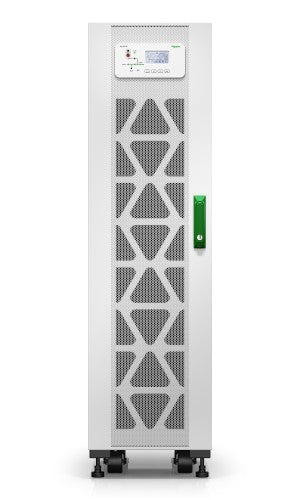

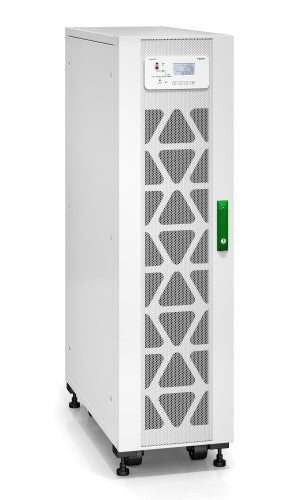

APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V
Description
APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 380 mm, Depth: 928 mm, Height: 1400 mm
Specifications
| Power |
|---|
| Input power factor |
0.99 |
| Output power |
20000 W |
| Input operation voltage (min) |
304 V |
| Input operation voltage (max) |
477 V |
| Output operation voltage (min) |
380 V |
| Output operation voltage (max) |
415 V |
| Maximum current |
37 A |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Input current Total Harmonic Distortion (THD) |
3% |
| Output power capacity |
20 kVA |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Pure sine |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Pure sine |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Input power factor |
0.99 |
| Output power |
20000 W |
| Input operation voltage (min) |
304 V |
| Input operation voltage (max) |
477 V |
| Output operation voltage (min) |
380 V |
| Output operation voltage (max) |
415 V |
| Maximum current |
37 A |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Input current Total Harmonic Distortion (THD) |
3% |
| Output power capacity |
20 kVA |
| Input frequency |
45/65 Hz |
| Ports & interfaces |
|---|
| SmartSlot |
Yes |
| SmartConnect port |
No |
| Battery |
|---|
| Number of batteries supported |
3 |
| Battery voltage |
220 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Form factor |
Tower |
| Product colour |
White |
| Certification |
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Display type |
LED |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 999.9 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output voltage |
400 V |
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Management card included |
No |
| Weight & dimensions |
|---|
| Package width |
563 mm |
| Package depth |
1014 mm |
| Package height |
1640 mm |
| Weight |
122 kg |
| Width |
380 mm |
| Package weight |
158 kg |
| Height |
1400 mm |
| Depth |
928 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Package width |
563 mm |
| Package depth |
1014 mm |
| Package height |
1640 mm |
| Package weight |
158 kg |
| Management card included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Output voltage |
400 V |
