APC NetShelter Rack PDU Advanced, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 48 Outlets, IEC309

NetShelter Rack PDU Advanced, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 48 Outlets, IEC309

Key Features

• Metered, 17.3kW, 3PH
• 415V, 30A, 530P6
• 48 Outlet
• Power metering via remote access
• High Density
• Availability
• Agility
• Manageability

Description

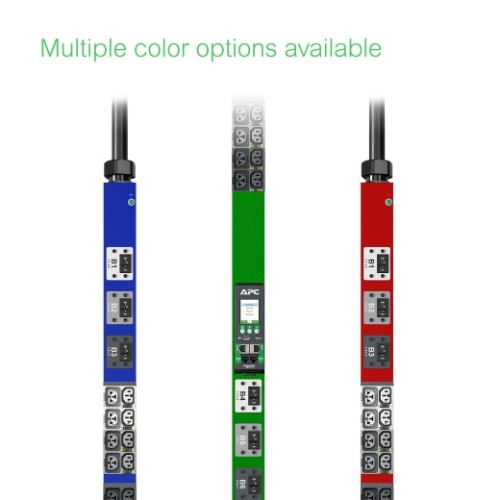

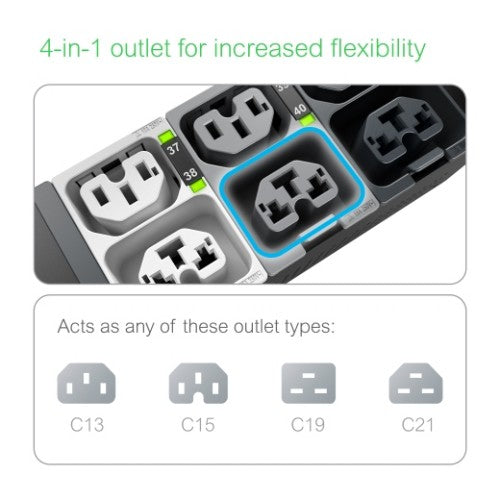

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.

Specifications

Design
On/off switch	Yes
Type	Three-phase
PDU types	Metered
Mounting	Vertical

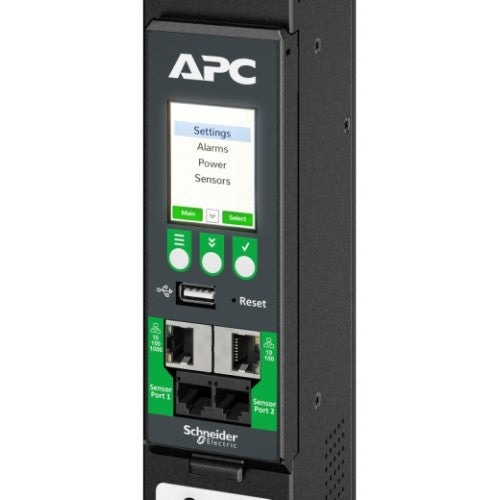

Display	LCD
Product colour	Black
Form factor	Rackmount
Regulatory Approvals	CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
Rack capacity	0U
Ports & interfaces
USB ports quantity	1
AC outlets quantity	48 AC outlet(s)
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler

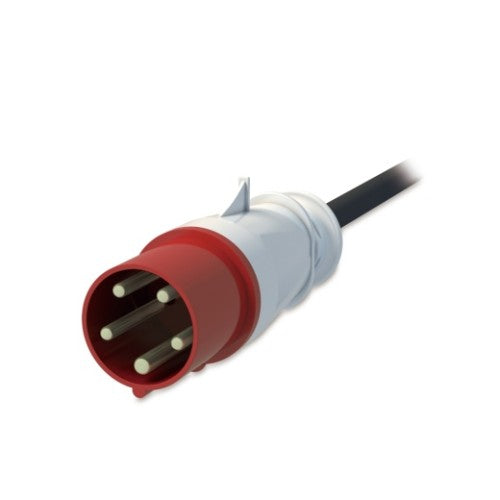

Power plug	IEC 60309
Ethernet LAN (RJ-45) ports	2
Features
Cable length	1.8 m
LED indicators	Activity, Network, Power
Daisy chain	Yes
Surge protection	Yes
Colour-coded outlets	Yes
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection	Yes
Compatible products	Compatible with most NetShelter SX enclosures and third-party racks
Reset button	Yes
Management features
Firmware upgradeable via	Network, USB
Firmware upgradeable	Yes
Monitoring	Current, Humidity, Power, Temperature, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	1.8 m
LED indicators	Activity, Network, Power
Display	LCD
Compatible products	Compatible with most NetShelter SX enclosures and third-party racks
Power
Maximum power	22000 W
Nominal input voltage	400 V
Nominal output voltage	230 V
Output voltage	230 V
Power protection features	Overload
Maximum current	32 A
Maximum total current draw per phase	32 A
Load capacity	22100 VA
Surge protection	Yes
AC input frequency	50 - 60 Hz
Number of phases	3
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	23 - 140 °F
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Weight & dimensions
Weight	8.4 kg
Width	56 mm
Depth	75 mm
Height	1780 mm
Package width	262 mm
Package depth	132 mm
Package height	1980 mm
Package weight	11.4 kg
Packaging data
Package width	262 mm
Package depth	132 mm
Package height	1980 mm
Package weight	11.4 kg
Technical details
Total carbon footprint (kg of CO2e)	13750.11
Compliance certificates	RoHS
Security
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Password protection	Yes
Logistics data
Total carbon footprint (kg of CO2e)	13750.11
