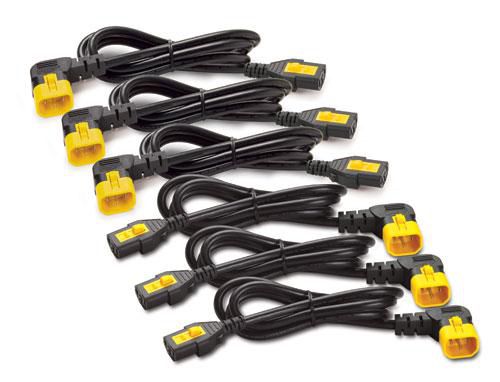

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m
Description
This product AP8704R-WW can free up space and secure power cords between rack-mount PDUs and attached IT equipment with the exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Specifications
| Ports & interfaces |
|---|
| Connector angle |
90° |
| Connector 2 |
C14 coupler |
| Connector 1 |
C13 coupler |
| Cable length |
1.2 m |
| Features |
|---|
| Connector angle |
90° |
| Connector 2 |
C14 coupler |
| Connector 1 |
C13 coupler |
| Cable length |
1.2 m |
| Connector 2 gender |
Male |
| Connector 1 gender |
Female |
| Product colour |
Black |
| Power |
|---|
| Input current |
10 A |
| Colour |
|---|
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-25 - 75 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating altitude |
0 - 3000 m |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
70 mm |
| Depth |
45 mm |
| Height |
240 mm |
| Weight |
1.01 kg |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Total carbon footprint (kg of CO2e) |
317.74 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Total carbon footprint (kg of CO2e) |
317.74 |
