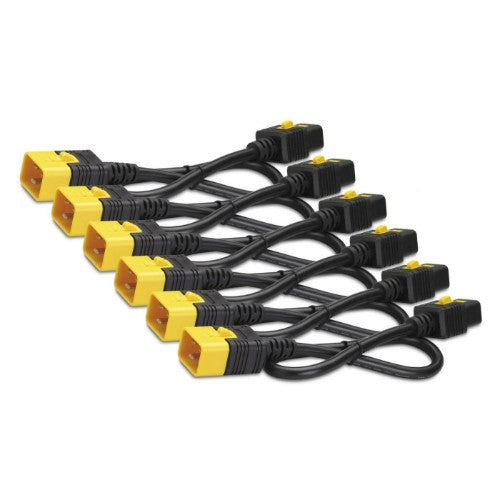

Power Cord Kit (6 ea), Locking, C19 to C20, 1.2m
Key Features
- Locking IEC receptacle to reduce risk of accidental disconnections
- Universal fit in any IEC receptacles
- Output jumpers in multiple lengths and configurations
- Exclusive locking feature for APC AP8000 range of Rack PDUs
- Multi region approved with regional input sockets
Description
AP8714S is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 4ft (1.2m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Specifications
| Ports & interfaces |
|---|
| Cable length |
1.22 m |
| Features |
|---|
| Cable length |
1.22 m |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Product colour |
Black |
| Power |
|---|
| Input current |
16 A |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
70 x 70 x 300 mm |
| Weight |
1.64 kg |
| Package width |
70 mm |
| Package height |
300 mm |
| Package weight |
1.64 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 75 °C |
| Storage temperature (T-T) |
-25 - 75 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Packaging data |
|---|
| Package width |
70 mm |
| Package height |
300 mm |
| Package weight |
1.64 kg |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Total carbon footprint (kg of CO2e) |
515.93 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Total carbon footprint (kg of CO2e) |
515.93 |
| Other features |
|---|
| Dimensions (WxDxH) |
70 x 70 x 300 mm |
