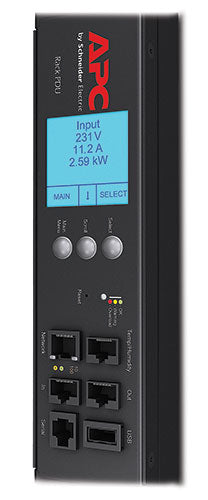

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19
Description
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Specifications
| Design |
|---|
| PDU types |
Metered, Metered-by-outlet, Switched |
| Mounting |
Vertical |
| Product colour |
Black |
| Certification |
EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE |
| Rack capacity |
0U |
| Ports & interfaces |
|---|
| AC outlets quantity |
24 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Features |
|---|
| Cable length |
1.83 m |
| Certification |
EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE |
| Management features |
|---|
| Monitoring |
Current, Power, Voltage |
| Outlet control |
Lock-out, Recycle, Turn off, Turn on |
| Ergonomics |
|---|
| Cable length |
1.83 m |
| Power |
|---|
| Maximum power |
11040 W |
| Nominal input voltage |
400 V |
| Nominal output voltage |
230 V |
| Maximum current |
16 A |
| Maximum total current draw per phase |
16 A |
| Maximum input current per phase |
16 A |
| Load capacity |
11040 VA |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
56 x 51 x 1829 mm |
| Weight |
8.23 kg |
| Width |
56 mm |
| Depth |
51 mm |
| Height |
1829 mm |
| Package width |
162 mm |
| Package depth |
117 mm |
| Package height |
2038 mm |
| Package weight |
10.5 kg |
| Package dimensions (WxDxH) |
162 x 117 x 2038 mm |
| Packaging data |
|---|
| Package width |
162 mm |
| Package depth |
117 mm |
| Package height |
2038 mm |
| Package weight |
10.5 kg |
| Package dimensions (WxDxH) |
162 x 117 x 2038 mm |
| Technical details |
|---|
| Total carbon footprint (kg of CO2e) |
10364.02 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
10364.02 |
