Service Bypass Panel- 230V, 32A, BBM, IEC320 C20/HW input, IEC-320 Output- (2) C19 (8) C13
Key Features
- Supports up to 32A, suitable for high-demand applications
- Provides 2 C19 and 8 C13 output connectors for flexible power distribution
- Features a bypass switch for safe maintenance
- Designed for rack installation, saving space in data centers
Reasons To Buy
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Load test port provides simple connection for full testing of a Symmetra PX UPS
Description

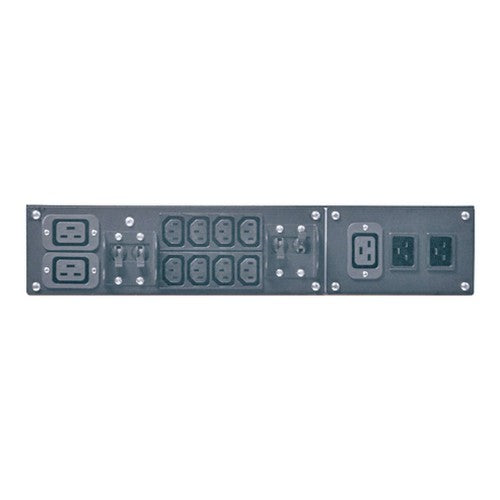

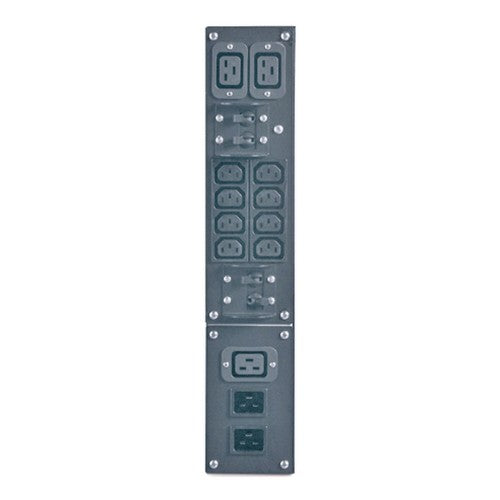

The APC SBP5000RMI2U Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (8) IEC C13, (2) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty.
Specifications
| Features |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
66 mm |
| Height |
89 mm |
| Weight |
11.4 kg |
