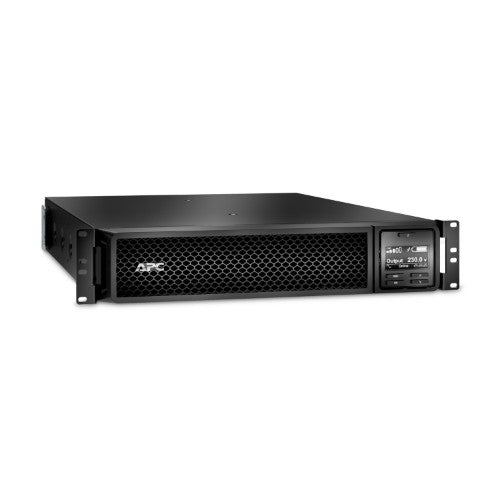

Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit
Description

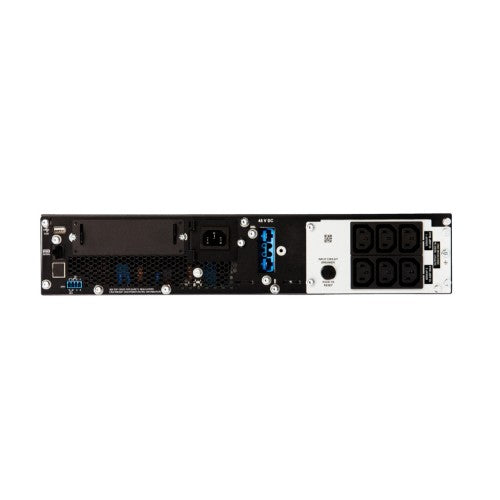

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14, BS1363A British and Schuko CEE 7/EU1-16P inputs, and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specifications
| Power |
|---|
| Output power |
1000 W |
| Input operation voltage (min) |
50 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
432 J |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
C13 coupler |
| USB 2.0 ports quantity |
1 |
| SmartConnect port |
No |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| LED indicators |
Status |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output power |
1000 W |
| Input operation voltage (min) |
50 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
432 J |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
50 dB |
| Crest factor |
3:1 |
| Audible alarm(s) |
Yes |
| Output power capacity |
1 kVA |
| Input frequency |
40/70 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Form factor |
Rackmount/Tower |
| LED indicators |
Status |
| Product colour |
Black |
| Certification |
CE, EAC |
| Cable length |
1.5 m |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
Green Premium |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
1843.14 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, EAC |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Management card included |
No |
| Sustainability |
|---|
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
|---|
| Package width |
594 mm |
| Package depth |
749 mm |
| Package height |
246 mm |
| Weight |
21 kg |
| Width |
432 mm |
| Package weight |
29.6 kg |
| Height |
85 mm |
| Depth |
505 mm |
| Packaging data |
|---|
| Package width |
594 mm |
| Package depth |
749 mm |
| Package height |
246 mm |
| Package weight |
29.6 kg |
| Management card included |
No |
| Logistics data |
|---|
| Products per pallet |
12 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
1843.14 |
