Valueline, Vertical Cable Manager for 2 & 4 Post Racks, 84"H X 12"W, Double-Sided with Doors
Reasons To Buy
Fiber management
Supports toolless installation of AR8444 fiber spools.

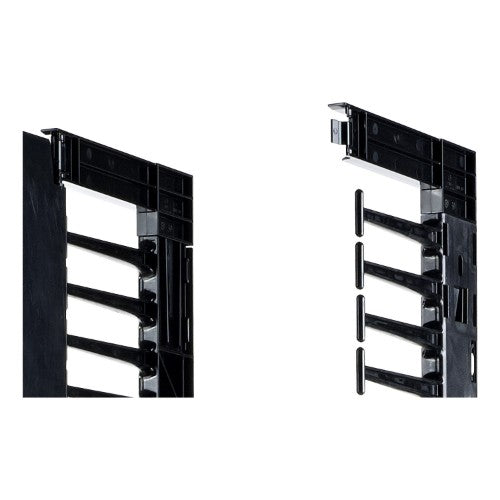

Smooth plastic fingers provide proper bend radius.
Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible NetBotz appliance.

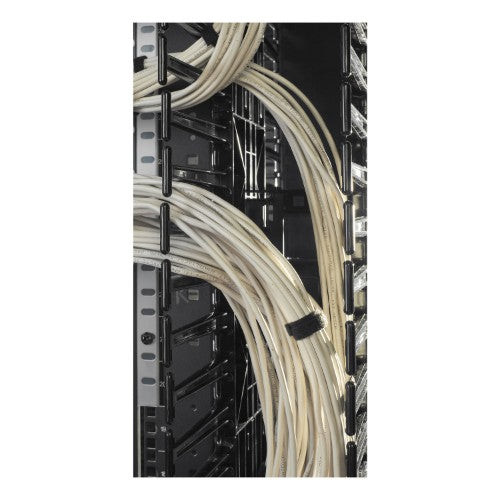

Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
Horizontal cable routing front-to-back
Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.

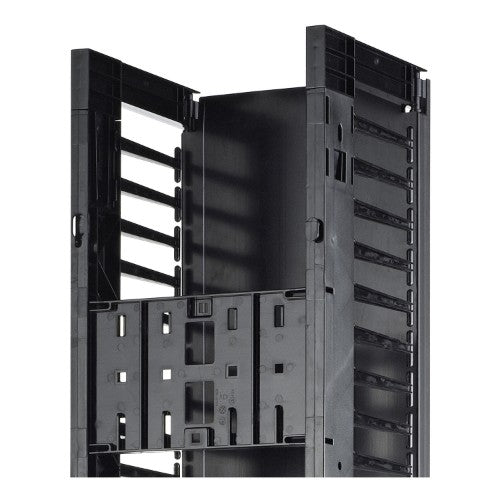

Cable management tie-off backplate for accessories
Backplates feature multiple mounting holes for toolless accessory installation of cable management accessories such as hook-and-loop cable managers and straps (AR8621) and fiber spools for excess fiber slack management (AR8444).
Door installs quickly without tools and hinges from the left or right to allow access inside the vertical cable manager channel.
Vertical cable managers are packaged unassembled and designed with a simple snap together design for rapid onsite assembly and installation.
Unassembled for rapid assembly onsite
Vertical cable managers are packaged unassembled and designed with a simple snap together design for rapid onsite assembly and installation.
Description

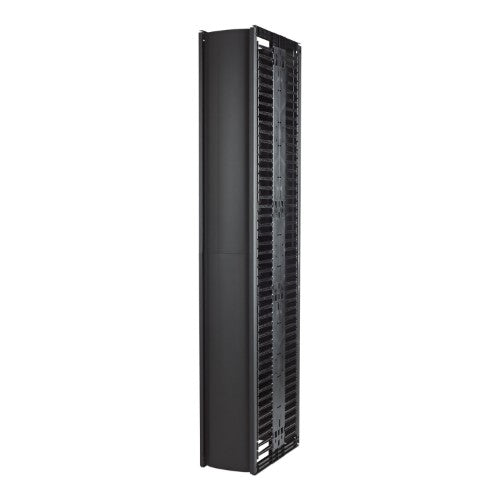

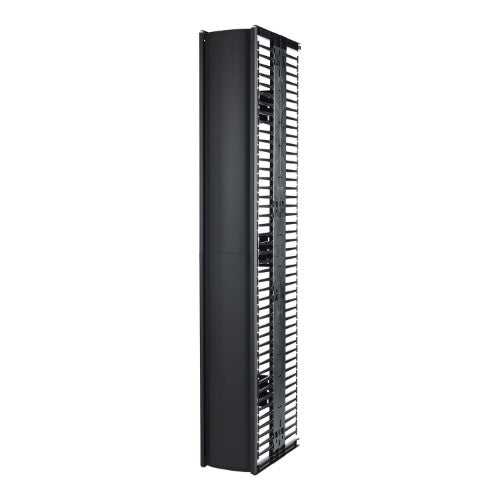

"This 12” wide, vertical cable manager for 2 and 4 Post open frame racks ships unassembled for rapid onsite assembly and features full height dual hinging doors and double-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications"
Specifications
| Features |
|---|
| Certification |
REACH |
| Hot-swap |
No |
| On/off switch |
No |
| Type |
Cable management panel |
| Product colour |
Black |
| Castor wheels |
No |
| Built-in fan |
No |
| Locking |
No |
| Harmonized System (HS) code |
85389099 |
| Cooling |
|---|
| Built-in fan |
No |
| Weight & dimensions |
|---|
| Package width |
330 mm |
| Package height |
439 mm |
| Package depth |
1168 mm |
| Package weight |
22.1 kg |
| Depth (max) |
57.2 cm |
| Width |
305 mm |
| Weight |
18.2 kg |
| Height |
2134 mm |
| Packaging data |
|---|
| Package width |
330 mm |
| Package height |
439 mm |
| Package depth |
1168 mm |
| Package weight |
22.1 kg |
| Technical details |
|---|
| Type |
Cable management panel |
| Compliance certificates |
RoHS |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Harmonized System (HS) code |
85389099 |
