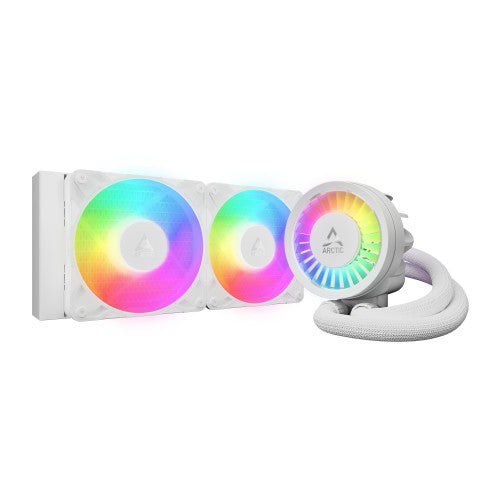

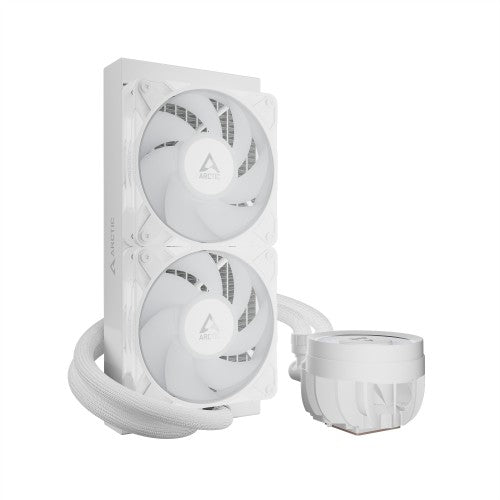

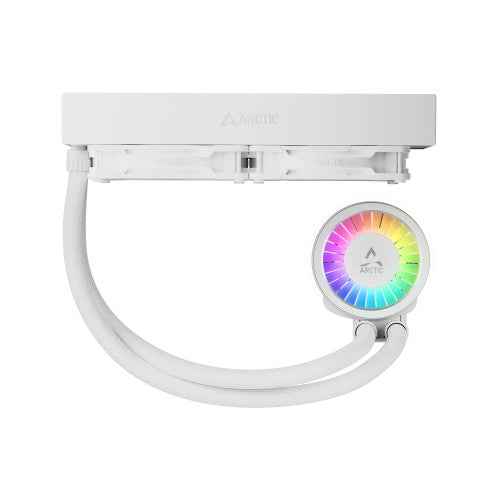

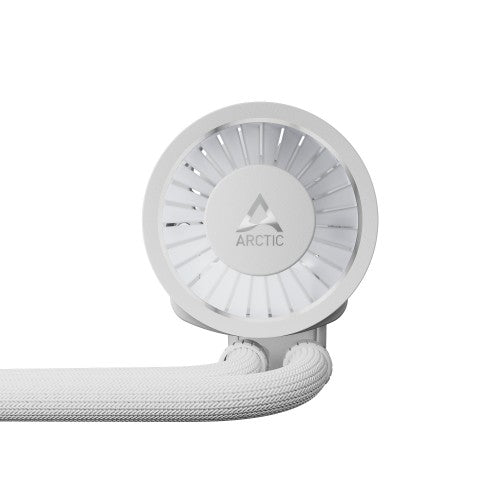

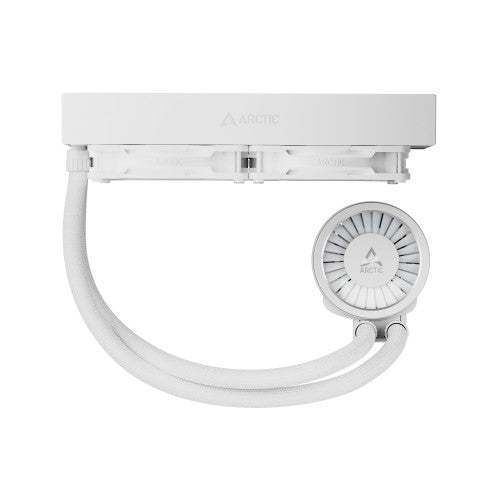

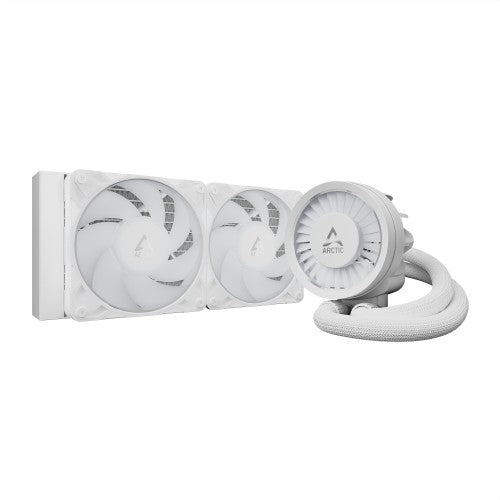

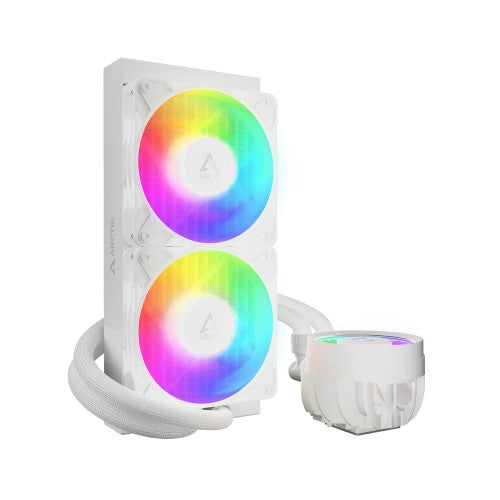

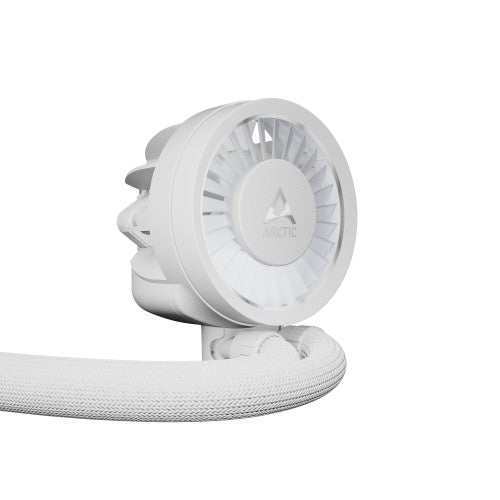

AMD/Intel, A-RGB, 2x 120 mm, 600-3000 RPM, 77 cfm, 6.9 mmH2O, FDB, PWM, 400-2500 RPM VRM, 800-2800 RPM Pump, 12 V DC, White
Description
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Fan connector |
4-pin |
| Pulse-width modulation (PWM) support |
Yes |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Type |
All-in-one liquid cooler |
| Operating temperature (T-T) |
0 - 40 °C |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1851, LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow |
77 cfm |
| Airflow |
131 m³/h |
| Number of fans |
2 fan(s) |
| Quantity per pack |
1 pc(s) |
| Pump connector |
4-pin |
| VRM fan speed (min) |
400 RPM |
| VRM fan speed (max) |
2500 RPM |
| Pump motor speed (min) |
800 RPM |
| Pump motor speed (max) |
2800 RPM |
| Fan static pressure |
6.9 mmH2O |
| Fan speed (min) |
600 RPM |
| Fan speed (max) |
3000 RPM |
| Design |
|---|
| Fan connector |
4-pin |
| Number of fans |
2 fan(s) |
| Illumination colour |
Multi |
| Product colour |
White |
| Cable length |
0.04 m |
| Illumination LED |
Yes |
| Radiator material |
Aluminum |
| Base plate material |
Copper |
| LED connector type |
3-pin |
| Technical details |
|---|
| Type |
All-in-one liquid cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1851, LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow |
77 cfm |
| Airflow |
131 m³/h |
| Number of fans |
2 fan(s) |
| Cable length |
0.04 m |
| Fan connector |
4-pin |
| Illumination LED |
Yes |
| Ports & interfaces |
|---|
| Fan connector |
4-pin |
| Pump connector |
4-pin |
| Power |
|---|
| LED voltage |
5 V |
| Pump voltage |
12 V |
| Pump current |
350 mA |
| Fan voltage |
12 V |
| Fan current |
0.33 A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Colour |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Package depth |
294 mm |
| Package width |
171 mm |
| Package height |
142 mm |
| Package weight |
2.06 kg |
| Weight |
1.67 kg |
| Cable length |
0.04 m |
| Radiator width |
12 cm |
| Radiator depth |
27.7 cm |
| Radiator height |
3.8 cm |
| Tube length |
45 cm |
| Tube inner diameter |
6 mm |
| Tube diameter |
1.24 cm |
| Pump width |
9.1 cm |
| Pump depth |
10.8 cm |
| Pump height |
6.85 cm |
| Packaging data |
|---|
| Package depth |
294 mm |
| Package width |
171 mm |
| Package height |
142 mm |
| Package weight |
2.06 kg |
| Package type |
Hanging box |
| Indication |
|---|
| Illumination colour |
Multi |
| Packaging content |
|---|
| Package type |
Hanging box |
| Other features |
|---|
| Country of origin |
Hong Kong |
| Pump connector |
4-pin |
| LED voltage |
5 V |
