ASUS TUF GAMING A620M-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, DDR5-SDRAM, 128 GB, Dual-channel
Description
ASUS TUF GAMING A620M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Specifications
| Internal I/O |
|---|
| Number of M.2 (M) slots |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| mSATA ports quantity |
0 |
| S/PDIF out connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
2 |
| Front panel audio connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| RGB LED pin header |
Yes |
| Technical details |
|---|
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD A620 |
| On-board graphics card |
No |
| Cooling type |
Passive |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Audio |
|---|
| Audio output channels |
7.1 channels |
| Performance |
|---|
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD A620 |
| RAID levels |
0, 1, 10 |
| Cooling type |
Passive |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Processor |
|---|
| Processor manufacturer |
AMD |
| Compatible processor series |
AMD Ryzen 7000 Series |
| Processor socket |
Socket AM5 |
| Memory |
|---|
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory |
128 GB |
| Unbuffered memory |
Yes |
| ECC сompatibility |
ECC & Non-ECC |
| Storage controllers |
|---|
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 10 |
| Number of storage drives supported |
6 |
| RAID support |
Yes |
| Graphics |
|---|
| On-board graphics card |
No |

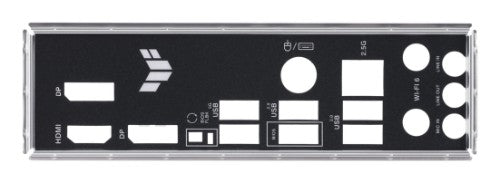

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
0 |
| PS/2 ports quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type |
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Features |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD A620 |
| Cooling type |
Passive |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Packaging data |
|---|
| Package width |
275 mm |
| Package depth |
275 mm |
| Package height |
67.5 mm |
| Package weight |
920 g |
| Software |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Weight & dimensions |
|---|
| Height |
50 mm |
| Package width |
275 mm |
| Package depth |
275 mm |
| Package height |
67.5 mm |
| Package weight |
920 g |
| Weight |
800 g |
| Width |
244 mm |
| Depth |
244 mm |
| Other features |
|---|
| Height |
50 mm |
| Package width |
275 mm |
| Package depth |
275 mm |
| Package height |
67.5 mm |
| Package weight |
920 g |
| mSATA ports quantity |
0 |
| Weight |
800 g |
