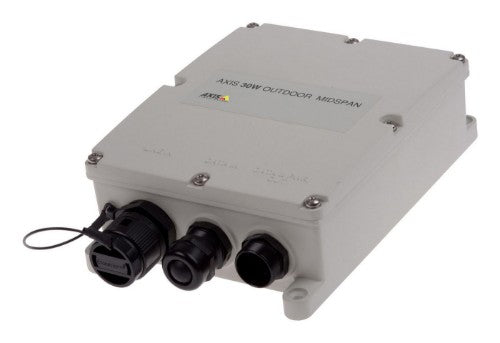

30W, 54V, IP66/67
Key Features
- 100 to 240 V AC; IEEE 802.3af and 802.3at; Outdoor-ready, IP66/67- and NEMA 4X-rated; Railway compliant EN 50121-4 and IEC 62236-4
Description
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.
Specifications
| Features |
|---|
| Housing material |
Aluminium |
| Brand compatibility |
Axis |
| Type |
Midspan |
| Placement supported |
Outdoor |
| Product colour |
Black, Grey |
| International Protection (IP) code |
IP66 |
| Number of connectors |
3 |
| Ergonomics |
|---|
| Number of connectors |
3 |
| Power |
|---|
| Output voltage |
54 V |
| Input voltage |
100-240 V |
| Rated power |
30 W |
| Input frequency |
50/60 Hz |
| Technical details |
|---|
| Type |
Midspan |
| Placement supported |
Outdoor |
| International Protection (IP) code |
IP66 |
| Harmonized System (HS) code |
85299020 |
| Weight & dimensions |
|---|
| Width |
170 mm |
| Weight |
1.4 kg |
| Height |
60 mm |
| Depth |
140 mm |
| Colour |
|---|
| Product colour |
Black, Grey |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
-40 - 65 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299020 |
