Description

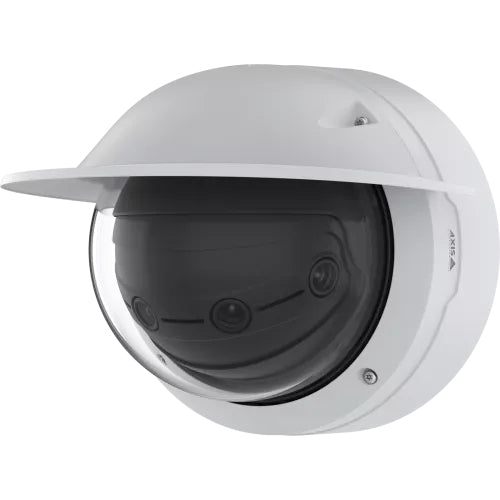

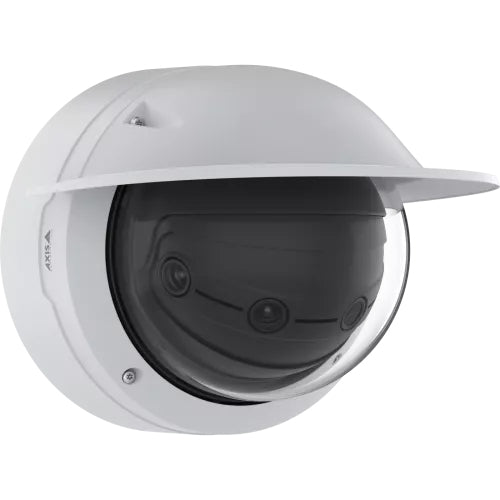

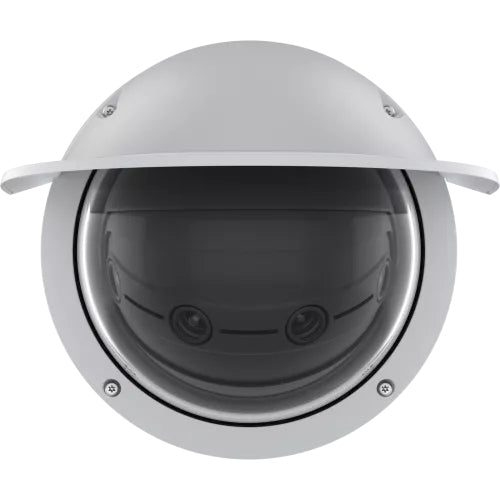

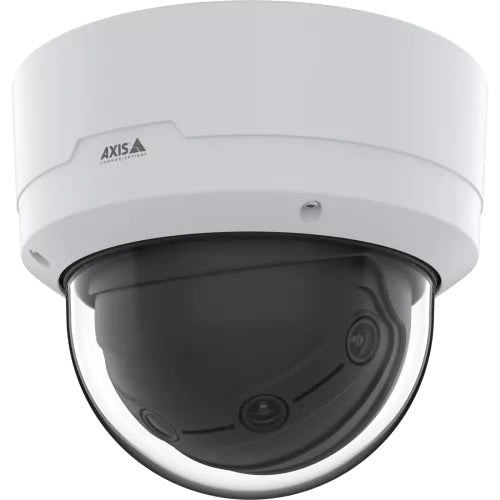

Q4809-PVE Panoramic Camera
Ultra clear overviews in great detail
With up to 10K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage, and 45° vertical coverage for great details with high pixel density. With Axis Forensic WDR, it captures high-quality images even when there’s both dark and light areas in the scene. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image.
Cost-effective and flexible
AXIS Q4809-PVE offers you the benefits of four cameras while paying for just one. That means there’s one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options – on walls, ceilings, or in corridors as flush or pendant.
Powerful and secure AI-based camera
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.
Key Features
- 10K multisensor camera with one IP address
- 180° horizontal, 45° vertical coverage
- AI-powered with support for advanced analytics
- Horizon straightening and lossless zoom
- Built-in cybersecurity with Axis Edge Vault
Description
This multisensor camera offers 26 MP at 30 fps to deliver images with high pixel density—perfect when you want to see all the details. Plus, a deep learning processing unit enables the use of advanced analytics.Ultra clear overviews in great detail
With up to 10K horizontal resolution at 30 fps, this multisensor camera offers seamless stitching of all four images to deliver smooth and cohesive 180° panoramic overviews for complete situational awareness. It offers 180° horizontal coverage, and 45° vertical coverage for great details with high pixel density. With Axis Forensic WDR, it captures high-quality images even when there’s both dark and light areas in the scene. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness—ideal when tracking objects across great distances. In addition, edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images. Plus, the operator’s viewing experience will be more natural due to the straightened horizon in the image.
Cost-effective and flexible
AXIS Q4809-PVE offers you the benefits of four cameras while paying for just one. That means there’s one camera to install, one cable to draw, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. It features built-in motors for remote pan/tilt/roll functionality and fast, cost-efficient installation. Additionally, it offers a variety of mounting options – on walls, ceilings, or in corridors as flush or pendant.
Powerful and secure AI-based camera
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP66, IP67 |
| Camera | |
| Minimum illumination | 0.03 lx |
| Tilt angle range | 20 - 80° |
| Pan range | -176 - 176° |
| Camera shutter speed | 1/100000 - 1/2 s |
| Camera pixel size | 1.55 µm |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 45° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.3 mm (1 / 2.3") |
| Number of sensors | 4 |
| Lens system | |
| Detect distance | 130 m |
| Observe distance | 51.6 m |
| Recognize distance | 26 m |
| Identify distance | 13 m |
| Minimum aperture number | 1.7 |
| Fixed focal length | 5 mm |
| Night vision | |
| Night vision | Yes |
| Video | |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 10240 x 2560 pixels |
| Frame rate | 30 fps |
| Total megapixels | 12 MP |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.1AE, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 8192 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Security algorithms | EAP-TLS, PEAP, MSCHAPv2, EAP |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 19.1 W |
| Power consumption (Power over Ethernet (PoE)) | 9.74 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 195 mm |
| Diameter | 22.8 cm |
| Weight | 3.32 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
