Description

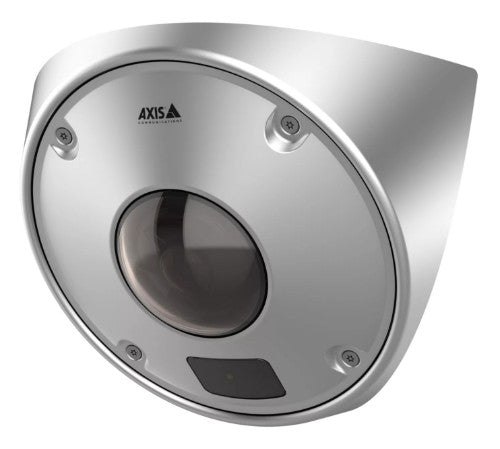

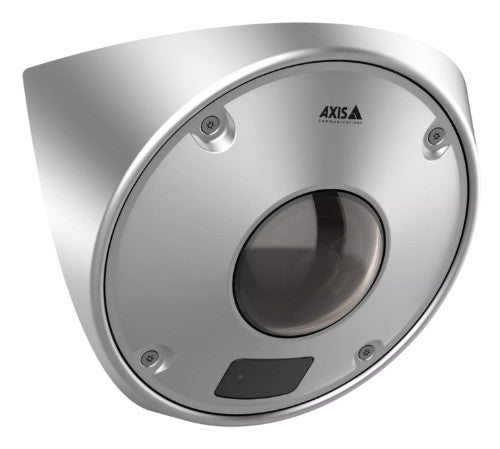

5 MP, impact-resistant anti-ligature camera, Steel
Two-way communication and full coverage
AXIS Q9227-SLV features a hidden speaker and microphone, complete with an on/off switch and voice enhancer, delivering clear two-way audio communication. It offers 5 MP and 115° horizontal and 89° vertical coverage with no blind spots. Ideal in prison cells and psychiatric wards, it includes 940 nm invisible IR illumination for surveillance in total darkness. Plus, a white LED ensures details in color. Thanks to Lightfinder 2.0 and Forensic WDR, this camera delivers true colors and great detail in challenging light or near darkness. What’s more, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements.
AI-powered analytics and strong cybersecurity
Featuring a deep learning processing unit (DLPU), this corner camera can run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With AXIS Audio Analytics you’ll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts and coughing fits as well as changes in sound level. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Occupant safety and privacy
With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm. It comes with built-in invisible IR LEDs (940 nm) for surveillance in complete darkness that doesn’t irritate or provoke the occupant*. It also includes AXIS Live Privacy Shield for AI-based dynamic masking of objects. Available in stainless steel or white colored stainless steel, this robust IK11, IP66-, IP6K9K-, and IP69-rated camera can withstand tough conditions. It’s easy to clean with detergent or graffiti remover. Plus, an indication LED makes it easy to see if the camera is active or not.
Key Features
- Compact, IK11-rated, anti-ligature design
- Built-in speaker and microphone
- AI-powered audio and video analytics
- Easy to install and clean
- Built-in cybersecurity with Axis Edge Vault
Description
This compact and robust ligature-resistant (anti-ligature) camera delivers outstanding 5 MP image quality. It comes with AI-powered video and audio analytics, and a hidden speaker and microphone that allows for two-way audio communication.Two-way communication and full coverage
AXIS Q9227-SLV features a hidden speaker and microphone, complete with an on/off switch and voice enhancer, delivering clear two-way audio communication. It offers 5 MP and 115° horizontal and 89° vertical coverage with no blind spots. Ideal in prison cells and psychiatric wards, it includes 940 nm invisible IR illumination for surveillance in total darkness. Plus, a white LED ensures details in color. Thanks to Lightfinder 2.0 and Forensic WDR, this camera delivers true colors and great detail in challenging light or near darkness. What’s more, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements.
AI-powered analytics and strong cybersecurity
Featuring a deep learning processing unit (DLPU), this corner camera can run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans. With AXIS Audio Analytics you’ll be notified whenever something relevant happens, even when there's no visual indication. For instance, it can detect screams, shouts and coughing fits as well as changes in sound level. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Occupant safety and privacy
With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm. It comes with built-in invisible IR LEDs (940 nm) for surveillance in complete darkness that doesn’t irritate or provoke the occupant*. It also includes AXIS Live Privacy Shield for AI-based dynamic masking of objects. Available in stainless steel or white colored stainless steel, this robust IK11, IP66-, IP6K9K-, and IP69-rated camera can withstand tough conditions. It’s easy to clean with detergent or graffiti remover. Plus, an indication LED makes it easy to see if the camera is active or not.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | UL, CE, KC, VCCI, RCM, FCC, ICES, WEEE |
| Built-in light | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK11 |
| Fog proof | Yes |
| Form factor | Corner |
| Product colour | Steel |
| Mounting type | Ceiling |
| LED indicators | Yes |
| International Protection (IP) code | IP66, IP69, IP6K9K |
| Housing material | Polycarbonate (PC), Stainless steel |
| Camera | |
| Minimum illumination | 0 lx |
| Tilt angle range | -10 - 10° |
| Camera shutter speed | 1/66500 - 2 s |
| Lens viewing angle, horizontal | 115° |
| Lens viewing angle, vertical | 89.2° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Auto focus | Yes |
| Detect distance | 46.1 m |
| Observe distance | 19.4 m |
| Recognize distance | 10 m |
| Identify distance | 5.1 m |
| Closest focusing distance | 1 m |
| Fixed focal length | 3.7 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR/White |
| Infra-red wavelength | 940 nm |
| B/W night vision distance | 10 m |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness, White balance |
| Privacy masking | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 2880 x 2160 pixels |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Frequency range | 820 - 5075 Hz |
| Built-in microphone | Yes |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Sample rates | 8 - 48 kHz |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3, HTTP/ 2, TLS3, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2000 MB |
| Flash memory | 8000 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Line crossing detection |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, MSCHAPv2 |
| Active tampering alarm | Yes |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 3.98 W |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Certificates | |
| Certification | UL, CE, KC, VCCI, RCM, FCC, ICES, WEEE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Package type | Box |
| Weight | 1.74 kg |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Number of cameras | 1 |
| Package type | Box |
| Terminal block included | Yes |
| User guide | Yes |
| Technical details | |
| Iris | Yes |
| Other features | |
| Video compression formats | H.264, H.265 |
