Description
IP66/IK10, 40kg Capacity

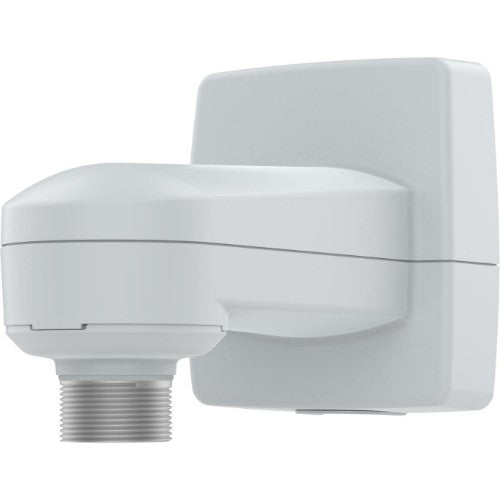

With this wall-and-pole mount, installers can choose to use either an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TP1001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TP1001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.
Key Features
- Robust, IK10-rated
- For indoor and outdoor use
- Versatile connection with IDC connector
- Built-in IP66-rated RJ45 connector
Description

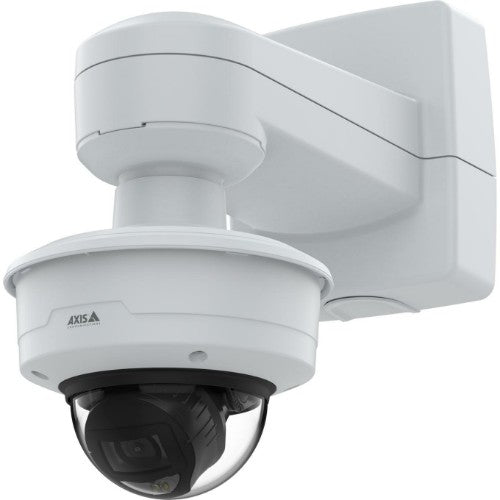

Designed for Axis dome cameras, AXIS TP1001-E Wall-and-Pole Mount offers flexible installation and versatile connection with RJ45 or IDC connectors.With this wall-and-pole mount, installers can choose to use either an RJ45 or IDC (insulation-displacement contact) connector for the installation. It features a built-in cable with an ethernet IP66-rated RJ45 connector to facilitate installation and prevent water and dust from entering the camera. Made from impact-resistant, outdoor-ready material, AXIS TP1001-E is suited for both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS TP1001-E from a wall mount to a pole mount (AXIS Steel Straps TX30 are required). The mount is also suitable for corner mounting with an optional accessory.
Specifications
| Features | |
|---|---|
| Housing material | Aluminium |
| Brand compatibility | Axis |
| Compatibility | P3255-LVE, Q3538-LVE, P3727-PLE |
| Type | Mount |
| Placement supported | Universal |
| Product colour | White |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Maximum weight capacity | 40 kg |
| Ergonomics | |
| Maximum weight capacity | 40 kg |
| Ports & interfaces | |
| DC-in jack | Yes |
| Technical details | |
| Compatibility | P3255-LVE, Q3538-LVE, P3727-PLE |
| Type | Mount |
| Placement supported | Universal |
| Maximum weight capacity | 40 kg |
| International Protection (IP) code | IP66 |
| Doesn't contain | PVC |
| Weight & dimensions | |
| Width | 152.6 mm |
| Weight | 2.16 kg |
| Height | 183.6 mm |
| Depth | 291.8 mm |
| Colour | |
| Product colour | White |
| Packaging content | |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 10 - 100% |
| Operating temperature (T-T) | -50 - 65 °C |
| Certificates | |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM, TAA |
