Description
Ultra-smooth and high accuracy absolute positioning
Swift and smooth

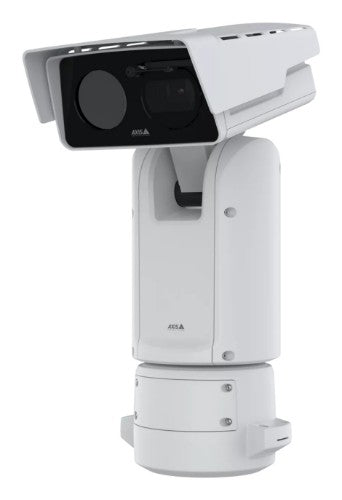

AXIS TQ1818-E provides an unobstructed 360° endless pan and a ground-to-sky view of 135°, offering maximum situational awareness. It supports a selected range of Axis box and thermal cameras. With flexible mounting options, including wall, column, and pole mounts, AXIS TQ1818-E is simple to install in various environments. Dual RJ45 and SFP interfaces enable secure and reliable network connections over long distances. Built-in de-icing control ensures continuous operation in extreme temperatures, delivering high-performance results in any condition. The positioning unit is specifically designed to be reliable, robust and weatherproof.
Key Features
- Responsive positioning with 360° endless pan and 135° tilt from ground to sky
- Long-distance network connection
- Power: 56 VDC
- Weather protection
- For selected Axis box and thermal cameras
Description
AXIS TQ1818-E is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements – putting operators on the spot in an instant or providing smooth panoramic viewing.Swift and smooth
AXIS TQ1818-E provides an unobstructed 360° endless pan and a ground-to-sky view of 135°, offering maximum situational awareness. It supports a selected range of Axis box and thermal cameras. With flexible mounting options, including wall, column, and pole mounts, AXIS TQ1818-E is simple to install in various environments. Dual RJ45 and SFP interfaces enable secure and reliable network connections over long distances. Built-in de-icing control ensures continuous operation in extreme temperatures, delivering high-performance results in any condition. The positioning unit is specifically designed to be reliable, robust and weatherproof.
Specifications
| Features | |
|---|---|
| Protection features | Weather resistant |
| Placement supported | Outdoor |
| Product colour | White |
| Certification | UL/cUL, CE, KC, VCCI, RCM |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Turn angle | 360° |
| Tilt angle range | -90 - 45° |
| Maximum weight capacity | 5 kg |
| Ergonomics | |
| Turn angle | 360° |
| Tilt angle range | -90 - 45° |
| Maximum weight capacity | 5 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Line-in | Yes |
| Power | |
| Input voltage | 56 V |
| Power consumption (typical) | 17 W |
| Power consumption (max) | 150 W |
| Technical details | |
| Protection features | Weather resistant |
| Placement supported | Outdoor |
| Turn angle | 360° |
| Tilt angle range | -90 - 45° |
| Maximum weight capacity | 5 kg |
| International Protection (IP) code | IP66 |
| Weight & dimensions | |
| Width | 229 mm |
| Weight | 10.5 kg |
| Height | 396 mm |
| Depth | 207 mm |
| Colour | |
| Product colour | White |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Certificates | |
| Certification | UL/cUL, CE, KC, VCCI, RCM |
