SYSTEM X - Rail Mounting Bracket for BT8390 - 5mm from Wall
Key Features

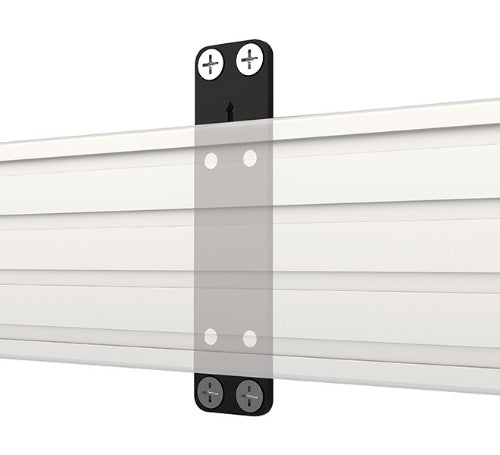

- Designed to allow BT8390 horizontal rails to be mounted to the wall

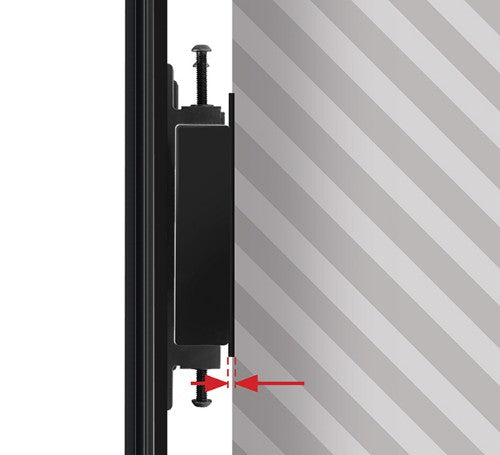

- Ideal for close-to-the-wall installations, mounting rails only 5mm from the wall

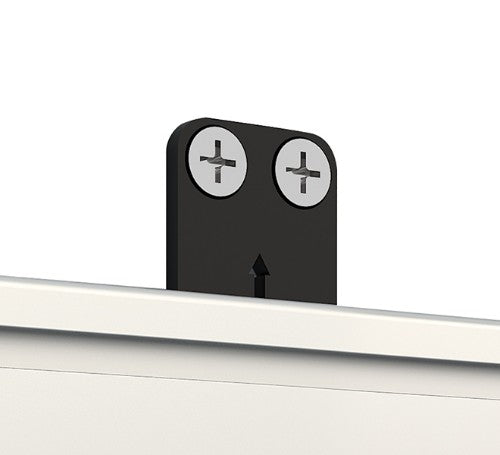

- Countersunk screws sit flush with the plate for a neat installation

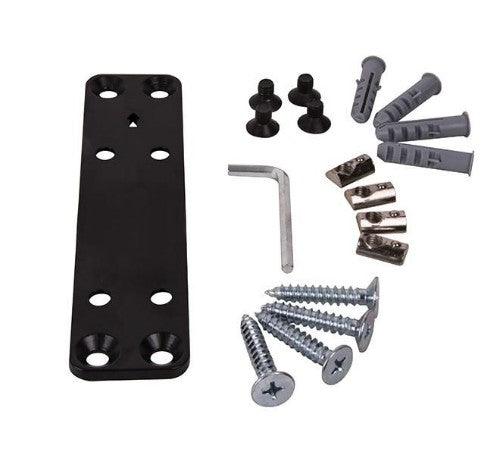

- All mounting hardware included
Description
The BT8390-WFK1 is a bracket designed to fix BT8390 mounting rails onto walls, for the installation of menu boards and other multi-screen configurations. The slim yet sturdy 5mm thick plate is designed for installations using fixed or tilting interface arms from the System X range and keeps the profile of finished installations to a minimum.
Specifications
| Mounting |
|---|
| Product type |
Bracket |
| Compatibility |
BT8390-VESA200F, 200T, 400F, 400T |
| Product colour |
Black |
| Features |
|---|
| Product type |
Bracket |
| Compatibility |
BT8390-VESA200F, 200T, 400F, 400T |
| Product colour |
Black |
| Technical details |
|---|
| Distance to the wall (max) |
3.5 cm |
| Compatibility |
BT8390-VESA200F, 200T, 400F, 400T |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Distance to the wall (max) |
3.5 cm |
| Width |
45 mm |
| Height |
188 mm |
| Depth |
5 mm |
| Colour |
|---|
| Product colour |
Black |
| Packaging content |
|---|
| Screws included |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
83024200 |
