SYSTEM X - Wall-to-Wall Mounting Brackets for BT8390 - 4pcs
Key Features
- Designed to allow BT8390 horizontal rails to be mounted between walls
- Ideal for mounting between opposing walls, where the wall behind the rail is not present or is unsuitable for mounting
- 2m rail length can be exceeded with the use of corner supports*

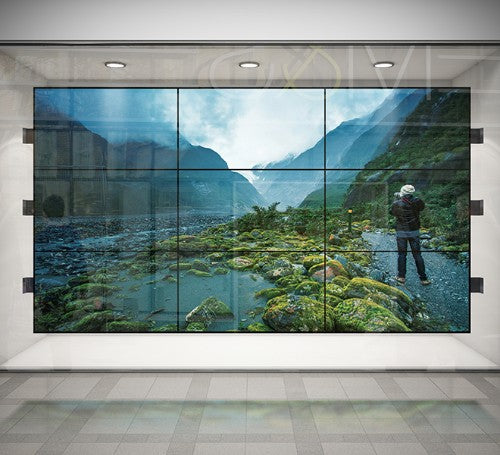

- When creating video walls, bracing the horizontal rails together is recommended
- using an additional rail (mounted vertically)*

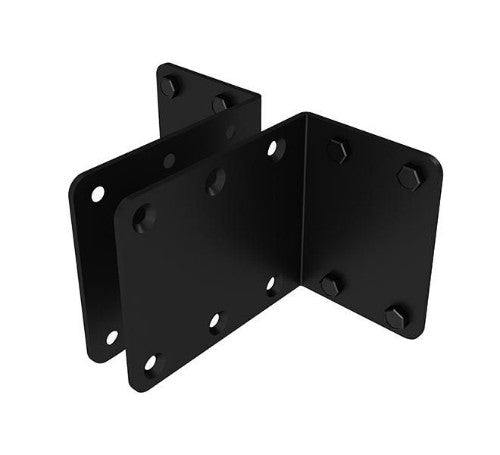

- 4 mounting plates supplied per kit, 2 plates are used at each end of the rail
- All mounting hardware included
- Please contact us for more information
Description

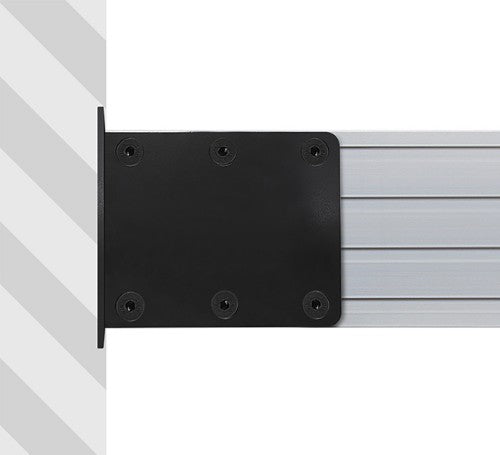

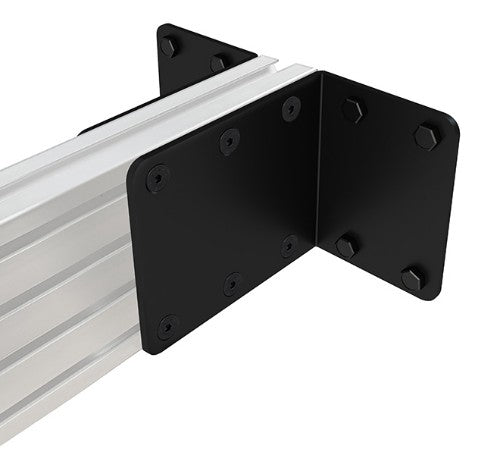

The BT8390-WFK4 is a bracket designed to fix BT8390 mounting rails between opposing walls, for the installation of menu boards and other multi-screen configurations. The plates fix the ends of the rail to the wall at a 90° angle, and are ideal for installations where the back wall is not present or is unsuitable for mounting.
Specifications
| Mounting |
|---|
| Mounting type |
Rail |
| Product type |
Bracket |
| Maximum weight capacity |
25 kg |
| Compatibility |
BT8390 |
| Product colour |
Black |
| Features |
|---|
| Mounting type |
Rail |
| Product type |
Bracket |
| Maximum weight capacity |
25 kg |
| Compatibility |
BT8390 |
| Product colour |
Black |
| Technical details |
|---|
| Mounting type |
Rail |
| Compatibility |
BT8390 |
| Product colour |
Black |
| Maximum weight capacity |
25 kg |
| Weight & dimensions |
|---|
| Width |
90 mm |
| Height |
116 mm |
| Depth |
140 mm |
| Colour |
|---|
| Product colour |
Black |
| Packaging content |
|---|
| Quantity per pack |
4 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
83024200 |
