Description
Pure Base 500DX, ATX/M-ATX/Mini-ITX, 450 x 232 x 443, Black
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performance

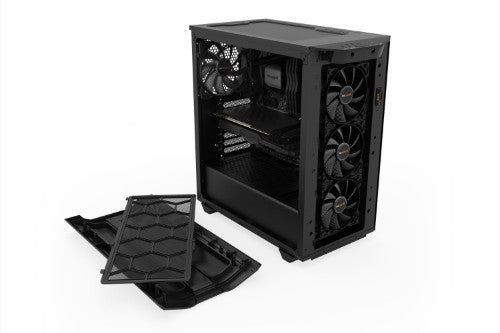

For all who strive for maximum performance and especially with water-cooled systems, the Pure Base 500DX Black with its extremely air-permeable front and top cover is the right choice. The dust filters on the front and bottom are easy to remove for cleaning.
3 PREINSTALLED PURE WINGS 2
Whisper-quiet operation

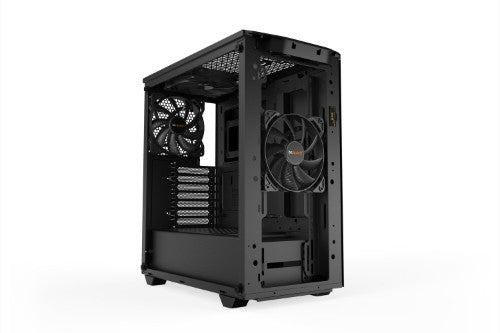

3 preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the fans at the front, top and rear are 140mm models, resulting in very quiet operation. Up to two 140mm fans can be installed in addition.

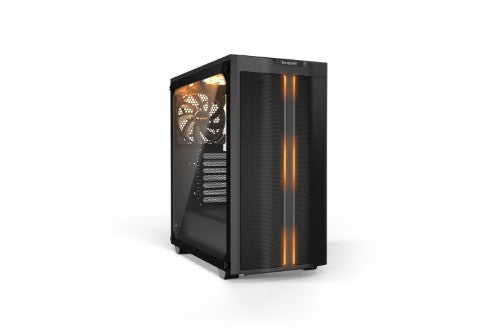

IMPRESSIVE ILLUMINATION
ARGB light at the front and inside the case
ARGB LEDs offer multiple colors and modes to individualize the look of the case from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.

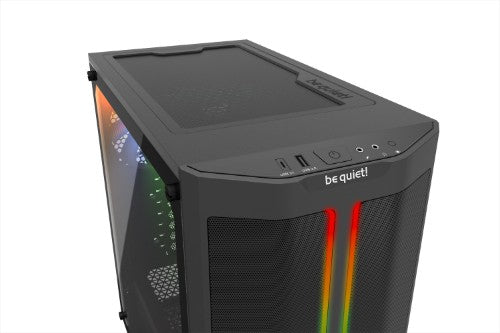

SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.
SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500DX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.
EYE-CATCHING FEATURES
And great cable routing possibilities
Pure Base 500DX Black offers various options for installing up to 5 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.

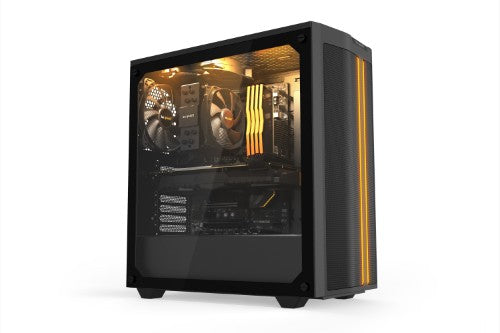

TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Key Features
- High airflow intake front panel and top cover for maximum performance
- 3 Pure Wings 2 140mm fans guarantee high cooling performance and silent operation
- ARGB LED at the front and inside the case
- USB 3.2 Gen. 2 Type C for latest hardware
- Water cooling ready for radiators of up to 360mm
- Up to 2 SSDs can be installed prominently behind the window panel
- Generous space for high-end graphics cards and large coolers
- Side panel made of tempered glass
Description
The be quiet! Pure Base 500DX Black is optimized for high cooling performance and designed for those who seek high airflow.HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performance
For all who strive for maximum performance and especially with water-cooled systems, the Pure Base 500DX Black with its extremely air-permeable front and top cover is the right choice. The dust filters on the front and bottom are easy to remove for cleaning.
3 PREINSTALLED PURE WINGS 2
Whisper-quiet operation
3 preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the fans at the front, top and rear are 140mm models, resulting in very quiet operation. Up to two 140mm fans can be installed in addition.
IMPRESSIVE ILLUMINATION
ARGB light at the front and inside the case
ARGB LEDs offer multiple colors and modes to individualize the look of the case from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.
SMART I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.
SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500DX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.
EYE-CATCHING FEATURES
And great cable routing possibilities
Pure Base 500DX Black offers various options for installing up to 5 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Specifications
| Technical details | |
|---|---|
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 5 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Supported HDD sizes | 2.5,3.5" |
| Side window | Yes |
| Product colour | Black |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 36.9 cm |
| Maximum PSU length | 25.8 cm |
| Type | PC |
| Form factor | Midi Tower |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Indication | |
| Illumination location | Front, Internal |
| Illumination colour | Blue, Green, Red |
| Illumination | Yes |
| Ergonomics | |
| On/off button | Yes |
| Certificates | |
| Certification | CE, RoHS |
| Design | |
| Anti-dust filter | Yes |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 5 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Side window | Yes |
| Illumination location | Front, Internal |
| Illumination colour | Blue, Green, Red |
| Illumination | Yes |
| Certification | CE, RoHS |
| Product colour | Black |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 36.9 cm |
| Maximum PSU length | 25.8 cm |
| Type | PC |
| Form factor | Midi Tower |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
| Power supply | |
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Power supply location | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140 mm |
| Front fans installed | 1x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Top fans installed | 1x 140 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Front fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
| Rear fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
| Top fans supported description | 140x140x25 mm, 900 rpm, 17.1 dB , 55.8 cfm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |

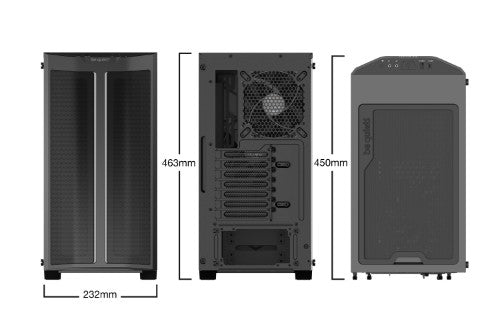

| Weight & dimensions | |
| Width | 232 mm |
| Depth | 450 mm |
| Height | 443 mm |
| Weight | 7.8 kg |
| Packaging data | |
| Package width | 285 mm |
| Package height | 494 mm |
| Package depth | 510 mm |
| Package weight | 8.49 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Harmonized System (HS) code | 84733080 |
