Description

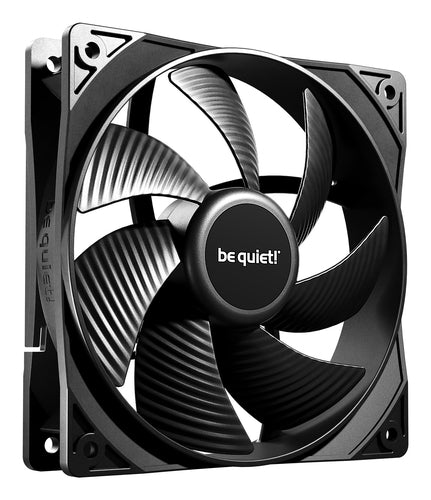

Pure Wings 3 120mm PWM, 1600RPM, 49.9 cfm/ 84.8 m3/h
With low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
Key Features
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 120mm PWM can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Iconic, unmistakable and streamlined design that avoids anything unnecessary
- Product conception, design and quality control in Germany
Description
Performant, Progressive, QuietWith low minimum rpm and high top-end speed, Pure Wings 3 120mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 1600 RPM |
| Bearing type | Rifle bearing |
| Noise level (high speed) | 25.5 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Maximum airflow | 49.9 cfm |
| Maximum air pressure | 1.45 mmH2O |
| Airflow | 84.8 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Rifle bearing |
| Fan's mean time to failure (MTTF) | 80000 h |
| Design | |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 0.46 m |
| Illumination LED | No |
| Technical details | |
| Noise level (high speed) | 25.5 dB |
| Type | Fan |
| Fan diameter | 12 cm |
| Maximum airflow | 49.9 cfm |
| Maximum air pressure | 1.45 mmH2O |
| Airflow | 84.8 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.46 m |
| Fan connector | 4-pin |
| Illumination LED | No |
| Sustainability compliance | Yes |
| Sustainability certificates | Triman |
| Compliance certificates | CE, RoHS, UKCA, WEEE |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Fan power consumption | 2.4 W |
| Fan current | 0.1 A |
| Colour | |
| Product colour | Black |

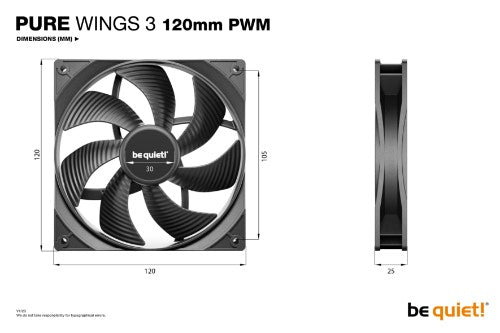

| Weight & dimensions | |
| Package depth | 155 mm |
| Package width | 122 mm |
| Package height | 27 mm |
| Width | 120 mm |
| Package weight | 175 g |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 148 g |
| Cable length | 0.46 m |
| Packaging data | |
| Package depth | 155 mm |
| Package width | 122 mm |
| Package height | 27 mm |
| Package weight | 175 g |

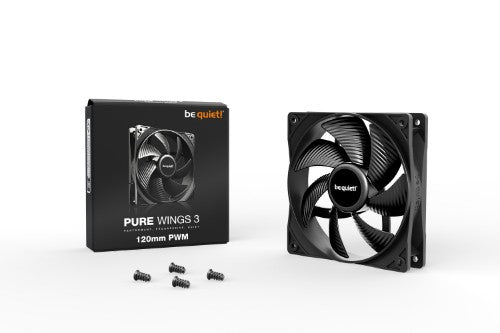

| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Logistics data | |
| Shipping (inner) case width | 35.5 cm |
| Shipping (inner) case length | 42.7 cm |
| Shipping (inner) case height | 33 cm |
| Shipping (inner) case gross weight | 11.7 kg |
| Products per shipping (inner) case | 60 pc(s) |
