Description

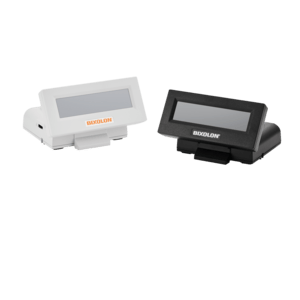

STN LCD (mono), Blue / White, 96 x 19.2 mm, 100 cd/m², 500mA, Black, 250g
The customer display features multiple cable paths for easy management, the display has an adjustable angle from 0 to 35°. Featuring an easy plug and play USB setup and is compatible with all major operating systems including Android™, iOS™ and Windows®.
Description

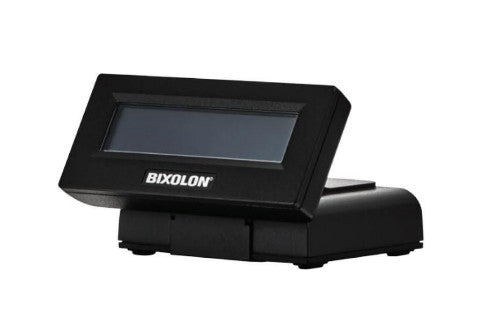

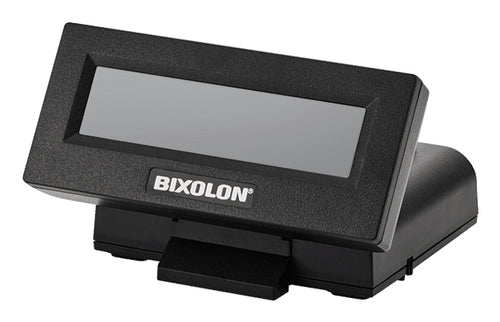

The BCD-3000 is BIXOLON’s smallest customer display, this mini Super Twister Nematic LCD Customer display is approximately 287% smaller than a standard customer display. Featuring a enhanced mono LCD with variable brightness, 2 lines of text display with flexible character alignment (horizontal, vertical, font and line spacing) and adjustable text alignment (center, left and right). While offering simple image download and display utility.The customer display features multiple cable paths for easy management, the display has an adjustable angle from 0 to 35°. Featuring an easy plug and play USB setup and is compatible with all major operating systems including Android™, iOS™ and Windows®.
Specifications
| Display | |
|---|---|
| Display number of lines | 2 lines |
| Display digits | 20 digits |
| Display brightness | 100 cd/m² |
| Display size (HxV) | 99 x 24 mm |
| LED backlight | No |
| Touchscreen | No |
| Display type | LCD |
| Effective viewing area | 99 x 24 mm |
| Features | |
| Product colour | Black |
| Audio | |
| Built-in speaker(s) | No |
| Storage | |
| Card reader integrated | No |
| Ports & interfaces | |
| Interface | RS-232 |
| Optional connectivity | USB 2.0 |
| Technical details | |
| Product colour | Black |
| Power | |
| Power source type | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 55 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width | 130 mm |
| Weight | 250 g |
| Height | 110.3 mm |
| Depth | 68.5 mm |
