Description
Direct Thermal, 203dpi, 108 mm, 30 - 1,000 mm, 64 MB SDRAM, 128 MB Flash, 2.8kg
Accompanied with a full-width Auto Cutter and Media Support and Taken Sensor (label present sensor). Complimented by enhanced reliability through a Specialized Paper Path, Guillotine Cutting System and Anti-Curl support and optional LED or LCD displays. The XL5-40 is backed by a 2-year standard warranty.
Supporting multiple connectivity options, the XL5-40 comes with Dual USB 2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XL5-40 is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ and XCM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Description

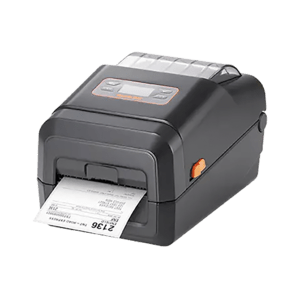

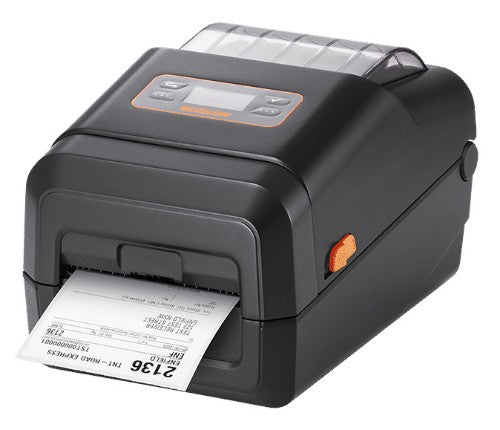

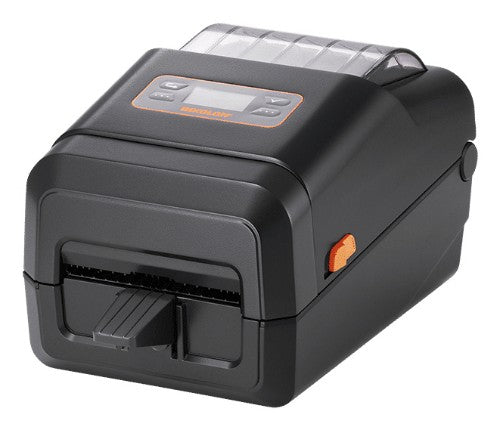

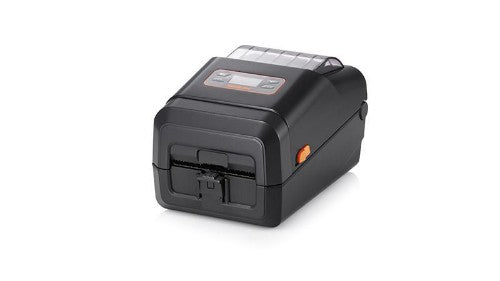

The XL5-40 is a 4-inch (114mm) Desktop Direct Thermal Linerless Label printer featuring an ergonomic clamshell design with economical linerless labelling features to allow the printing and cutting of various paper lengths for a range of applications within the Manufacturing, Retail, Hospitality and Healthcare industries. Available as the XL5-40 (203dpi) and XL5-43 (300dpi) resolution options, the XL5-40’s standard model (XL5-40) offers strong data processing and print speeds up to 6 ips (152mm/sec), with of 64MB SDRAM-DDR2, 128 MB Flash.Accompanied with a full-width Auto Cutter and Media Support and Taken Sensor (label present sensor). Complimented by enhanced reliability through a Specialized Paper Path, Guillotine Cutting System and Anti-Curl support and optional LED or LCD displays. The XL5-40 is backed by a 2-year standard warranty.

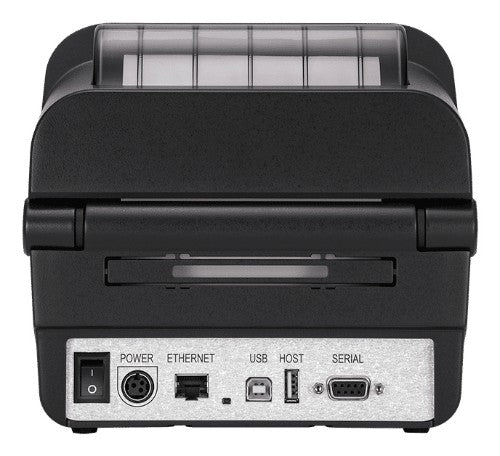

Supporting multiple connectivity options, the XL5-40 comes with Dual USB 2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XL5-40 is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ and XCM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Printing | |
| Print speed | 152 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Print technology | Direct thermal |
| Display | |
| Display resolution | 200 x 100 pixels |
| Display | LCD |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Media thickness | 0.09 - 0.20 mm |
| Maximum roll diameter | 12.7 cm |
| Ports & interfaces | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 Databar (RSS-14), Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, Standard 2/5, TLC39, UPC-A, UPC-E |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Page description languages | BPL, EPL, SLCS, ZPL II |
| Design | |
| Display resolution | 200 x 100 pixels |
| Display | LCD |
| Product colour | Black |
| Built-in display | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Product colour | Black |
| Built-in barcodes | 1D, Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 Databar (RSS-14), Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, Standard 2/5, TLC39, UPC-A, UPC-E |
| Sustainability certificates | ENERGY STAR |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width | 186 mm |
| Depth | 287.7 mm |
| Height | 173 mm |
| Weight | 2.8 kg |
