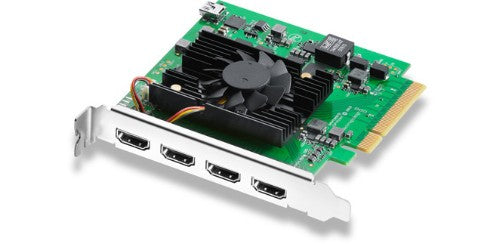

DeckLink Quad HDMI Recorder, 4x HDMI 2.0b, PCI E x8, 109 mm
Description
DeckLink Quad HDMI Recorder is a high performance PCIe card that lets you capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all at the same time! Featuring 4 independent HDMI 2.0b input connections, DeckLink Quad HDMI is like getting 4 separate and customizable capture cards in one, making it perfect for software live switching, real time computer game capture, streaming and more!
Specifications
| Performance |
|---|
| Internal |
Yes |
| Host interface |
PCIe |
| Certification |
FCC, CE, RCM, KC |
| Product colour |
Black, Green |
| HD type |
4K DCI |
| Technical details |
|---|
| Internal |
Yes |
| Host interface |
PCIe |
| Product colour |
Black, Green |
| Video |
|---|
| Analog signal format system |
NTSC, PAL |
| Supported video modes |
720p, 1080i, 1080p, 2160p |
| Supported resolutions |
640x480p60, 800x600p50, 800x600p60, 1440x900p50 1440x900p60, 1440x1080p50 1440x1080p60, 1600x1200p50, 1600x1200p60, 1920x1200p50, 1920x1200p60, 1920x1440p50, 1920x1440p60, 2560x1440p50, 2560x1440p60, 2560x1600p50, 2560x1600p60 |
| Video codecs |
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy |
| Ports & interfaces |
|---|
| HDMI in |
4 |
| Composite video in |
0 |
| Component video (YPbPr/YCbCr) in |
0 |
| S-Video inputs quantity |
0 |
| Audio (L/R) in |
0 |
| Headphone outputs |
0 |
| HDMI ports quantity |
4 |
| Firewire (IEEE 1394) ports |
0 |
| Software |
|---|
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Linux operating systems supported |
Yes |
| Bundled software |
Media Express, Disk Speed Test, Blackmagic Desktop Video Utility |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Certificates |
|---|
| Certification |
FCC, CE, RCM, KC |
| Weight & dimensions |
|---|
| Depth |
109 mm |
| Weight |
128 g |
| Packaging content |
|---|
| Quantity |
1 |
| Manual |
Yes |
