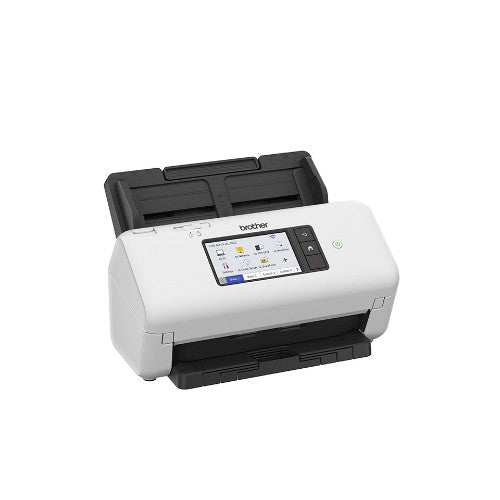

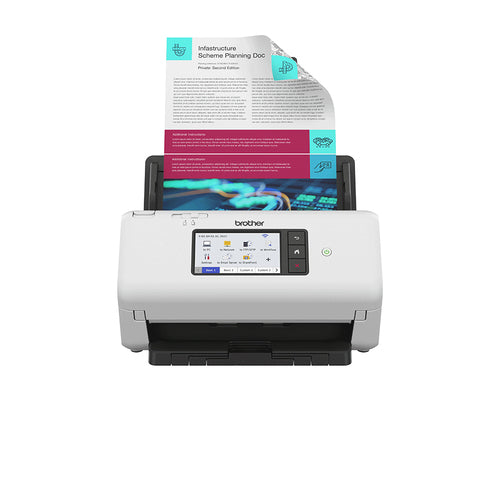

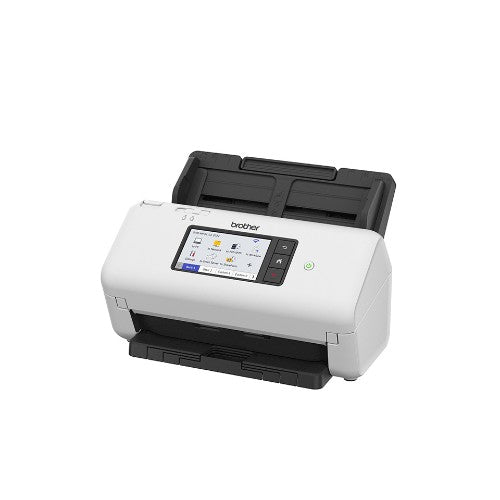

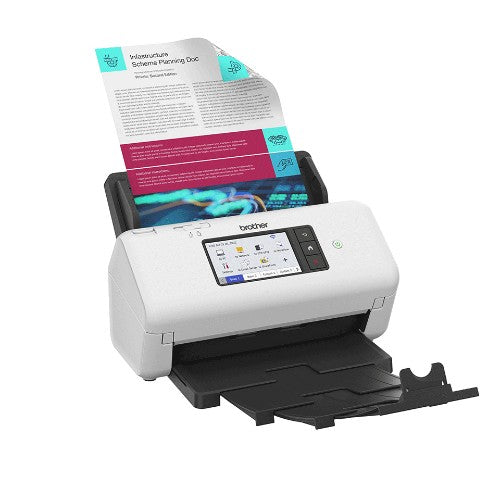

Brother ADS-4700W scanner ADF + Sheet-fed scanner 600 x 600 DPI A4 Black, White

With high-speed wired and wireless connectivity and dedicated user touchscreen. Ideal for complex workflows and sharing documents with colleagues.

Key Features

• Scan up to 40 pages per minute
• 2-sided scan up to 40 pages per minute
• 80 sheet Automatic Document Feeder (ADF)
• Wireless and wired connectivity
• SuperSpeed USB3.
• Scan directly to USB host

Reasons To Buy

Simple and intuitive

Set up a dedicated user interface with one-touch scanning and the ability to add up to 56 shortcuts to frequently used destinations. You can also use an optional external cardreader to make the scanning process even easier. Just tap the card and add your documents into the ADF to automatically and securely capture the information on the page.

Brother ScanEssentials

Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.
The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.

Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.

The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.

Advanced connectivity

With USB3.0, USB host, network and wireless connectivity, you can securely scan documents and share with colleagues.

Fast and reliable

With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4700W has a large 80 sheet ADF capacity and rapidly scans up to 40 pages per minute. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.

Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.

Description

Designed to enable businesses to simplify complex workflow or operational processes. Securely capture your documents to easily share and collaborate with colleagues whether they're at home or in the office. Large intuitive 10.9cm touchscreen with 56 configurable shortcuts Personalised multi-user experience Secure workgroup sharing Advanced image processing and batch scanning Features Auto Start scan, ultrasonic multifeed sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm Includes Brother ScanEssentials software Driver compatibility with TWAIN (WIN and macOS), WIA, ISIS, Linux SANE

Specifications

Scanning
Output greyscale depth	8 bit
Maximum scan size	355.6 x 215.9 mm
Optical scanning resolution	600 x 600 DPI
Enhanced scan resolution	1200 x 1200 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Greyscale levels	256
ADF scan speed (b/w, A4)	40 ppm
ADF scan speed (colour, A4)	40 ppm
Duplex ADF scan speed (b/w, A4)	80 ipm
Duplex ADF scan speed (colour, A4)	80 ipm
Sensor type	Dual CIS
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	6000 pages
Scan to	PC
Design
Built-in display	Yes
Touchscreen	Yes
Scanner type	ADF + Sheet-fed scanner
Display diagonal	10.9 cm (4.3")
Display	LCD
Product colour	Black, White
Colour display	Yes
Control type	Buttons
Performance
Sensor type	Dual CIS
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	6000 pages
Scan to	PC
Scan drivers	ISIS, TWAIN, WIA
Supported network protocols	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, ICMPv6
Scanning noise level	59 dB
Maximum duty cycle	120000 pages per month
Internal memory	512 MB
Ultrasonic sensor	Yes
Input capacity
Auto document feeder (ADF) input capacity	80 sheets
Paper handling
Maximum scan width	21.6 cm
Maximum scan length	35.6 cm
Maximum ISO A-series paper size	A4
Media thickness (min)	0.08 mm
Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Legal	Yes
Long-paper mode	Yes
Card thickness (max)	1.32 mm
Paper tray media weight	40 - 200 g/m²
Ports & interfaces
USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Network
Security algorithms	WEP, WPA-PSK, WPA2-PSK, WPA3
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g
Supported network protocols	DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, ICMPv6
IPv6 support	Yes
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Scan drivers	ISIS, TWAIN, WIA
Sound emission
Scanning noise level	59 dB
Power
Auto power off	Yes
Power consumption (typical)	26 W
Power consumption (standby)	8.6 W
Power consumption (off)	0.1 W
Input voltage	100-240 V
Power supply type	AC
Power consumption (PowerSave)	1.7 W
Power consumption (sleep)	1.7 W
Output voltage	24 V
Output current	1.9 A
AC input frequency	50 - 60 Hz
Sleep mode	Yes
Weight & dimensions
Width	243 mm
Depth	320 mm
Height	391 mm
Weight	3.23 kg
Package depth	243 mm
Package weight	3.88 kg
Package width	391 mm
Package height	320 mm
Packaging data
Package depth	243 mm
Package weight	3.88 kg
Package width	391 mm
Package height	320 mm
Quantity per pack	1 pc(s)
Products per pallet	40 pc(s)
Technical details
Maximum scan width	21.6 cm
Pallet gross height	17.5 cm
Media thickness (min)	0.08 mm
Security algorithms	WEP, WPA-PSK, WPA2-PSK, WPA3
Scanner type	ADF + Sheet-fed scanner
Maximum duty cycle	120000 pages per month
Country of origin	China
Product colour	Black, White
Layers per pallet	5 pc(s)
Master (outer) cases per pallet	40 pc(s)
Master (outer) cases per pallet layer	8 pc(s)
Harmonized System (HS) code	84716070
Pallet type	800 x 1200 mm
Memory
Internal memory	512 MB
Display
Touchscreen	Yes
Display diagonal	10.9 cm (4.3")
Display	LCD
Media formats
Legal	Yes
Features
Country of origin	China
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 x64, Windows 8.1, Windows 8.1 x64
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0
Other features
Certification	GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 - VRS Elite 5.2.0, Kofax Express 3.3.0
Spare part retention	5 year(s)
Pallet gross weight	170.4 kg
Security algorithms	WEP, WPA-PSK, WPA2-PSK, WPA3
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g
Scanner type	ADF + Sheet-fed scanner
Country of origin	China
Products per pallet	40 pc(s)
Layers per pallet	5 pc(s)
Master (outer) cases per pallet	40 pc(s)
Quantity per pack	1 pc(s)
Logistics data
Pallet gross weight	170.4 kg
Country of origin	China
Products per pallet	40 pc(s)
Layers per pallet	5 pc(s)
Master (outer) cases per pallet	40 pc(s)
Quantity per pack	1 pc(s)
Pallet gross height	17.5 cm
Master (outer) cases per pallet layer	8 pc(s)
Harmonized System (HS) code	84716070
