Description
USB-C, Thunderbolt 4, DP, SD 4, 2.5G, DC, USB-A

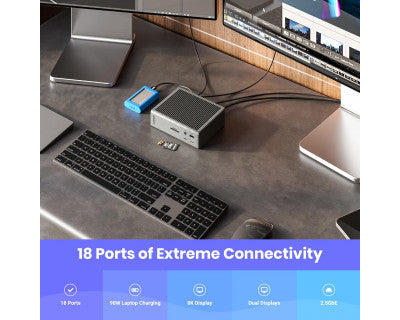

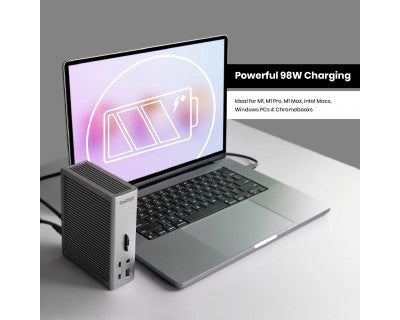

The TS4 offers a staggering 18 ports of connectivity, the most featured on any Thunderbolt dock ever. In addition to this, the TS4 provides up to 98W power delivery and supports resolutions up to 8K1 when connecting a single monitor.
For anyone looking to connect dual displays, the TS4 supports up to dual 6K 60Hz displays on Apple M1 Pro and M1 Max-based computers. Users on Intel-based Macs, Windows, or Chrome OS can connect up to dual 4K 60Hz displays2. Original M1-based Macs do not support dual displays.
Description
Not only is the TS4 the most powerful dock ever created, the dock with the most ports, the dock with the highest charging capabilities, the first dock with 2.5GbE, but it is also the dock that will drive us into the Thunderbolt 4 generation.The TS4 offers a staggering 18 ports of connectivity, the most featured on any Thunderbolt dock ever. In addition to this, the TS4 provides up to 98W power delivery and supports resolutions up to 8K1 when connecting a single monitor.
For anyone looking to connect dual displays, the TS4 supports up to dual 6K 60Hz displays on Apple M1 Pro and M1 Max-based computers. Users on Intel-based Macs, Windows, or Chrome OS can connect up to dual 4K 60Hz displays2. Original M1-based Macs do not support dual displays.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| Line-in | Yes |
| Line-out | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB Power Delivery up to | 98 W |
| DisplayPort version | 1.4 |
| Thunderbolt 4 ports quantity | 3 |
| Network | |
| Ethernet LAN data rates | 100000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Hub interfaces | 3.5mm, DisplayPort, Lightning, RJ-45, Thunderbolt 4, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Technical details | |
| Product colour | Grey |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Power | |
| Power supply type | DC |
| Weight & dimensions | |
| Weight | 640 g |
| Width | 42 mm |
| Depth | 113 mm |
| Height | 141 mm |
| Design | |
| Product colour | Grey |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | DC, Thunderbolt |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Power supply type | DC |
