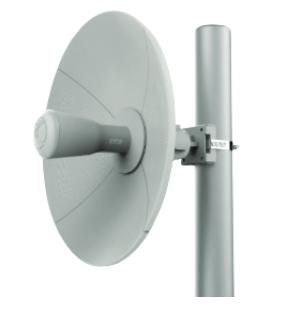

Cambium Networks ePMP Force 190 network antenna MIMO directional antenna 22 dBi

5 MHz, Channel Width 5 | 10 | 20 | 40 MHz, 2x2 MIMO/OFDM, 10/100 BaseT, PoE, ARQ, IP55, 128-bit AES, 8 W

Key Features

• Cambium Networks’ ePMP Force 190 will lower the logistical cost of
• ownership by reducing shipping costs with its highly compact packaging
• The ePMP Force 190 is designed to operate in high interference environments
• and provides throughput of up to 200Mbps with bi-directional traffic of real
• user data
• Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high
• performance and round-trip latency as low as 2 – 3 ms
• QoS management offers an outstanding quality for triple play services – VoIP, video and data and provides three levels
• of traffic priority
• Long deployment range is enabled by a high gain antenna combined with 27dBm of transmit power
• This platform is for the user base that wants a smaller on premises footprint while enabling high gain
• Install is a breeze with the easy to install mount, capable of pole and wall mounting

Description

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce
commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Specifications

Performance
Bandwidth note	5 MHz
Antenna gain level (max)	22 dBi
Networking standards	IEEE 802.1Q, IEEE 802.1p
Frequency band	4.91 - 5.97 GHz
Modulation	OFDM
Cabling technology	10/100Base-T(X)
Features
Survival wind speed	125 km/h
International Protection (IP) code	IP55
Antenna gain level (max)	22 dBi
Networking standards	IEEE 802.1Q, IEEE 802.1p
Frequency band	4.91 - 5.97 GHz
Modulation	OFDM
Antenna type	MIMO directional antenna
Mounting	Wall/Pole
Product colour	Grey
Certification	Z8H80FT0031 109W-0031 5 GHz EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1
Power
Power consumption (max)	8 W
Input voltage	12 - 30 V
Technical details
Antenna gain level (max)	22 dBi
Frequency band	4.91 - 5.97 GHz
Modulation	OFDM
Antenna type	MIMO directional antenna
Mounting	Wall/Pole
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p
Colour
Product colour	Grey
Certificates
Certification	Z8H80FT0031 109W-0031 5 GHz EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Weight & dimensions
Weight	1 kg
Depth	280 mm
Diameter	35 cm
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
