24 - 38 GHz, QPSK to 2048 QAM, 10/100/1000Base, 233 x 98 x 230mm
Description

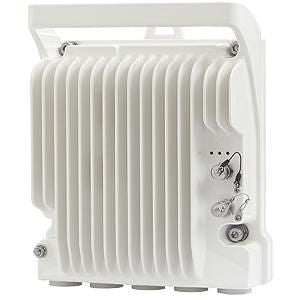

PTP 820 is a point-to-point licensed microwave backhaul platform that integrates leading networking functionality with the industry’s most advanced microwave technologies, creating a superior transport solution.Specifications
| Performance | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad |
| Frequency band | 24 - 38 GHz |
| Modulation | 8PSK, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, QPSK |
| Cabling technology | 10/100/1000Base-T(X) |
| Features | |
| International Protection (IP) code | IP66 |
| Product colour | White |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad |
| Frequency band | 24 - 38 GHz |
| Modulation | 8PSK, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, QPSK |
| Certification | EN 301 489-1, EN 301 489-4, Class B (Europe), FCC47 CFR, part 15, class B (US), ICES-003, Class B (Canada), TEC/EMI/TEL-001/01, Class B (India), EN61000-4- 5, Class 4 (for PWR and ETH1/PoE ports), EN 60950-1, IEC 60950-1, UL 60950-1, CSA-C22.2 No.60950-1, EN 60950-22, UL 60950-22, CSAC22.2.60950-22, ETSI EN 300 019-1-1 Class 1.2, ETSI EN 300 019-1- 2 Class 2.3 |
| Power | |
| Power source type | DC |
| Input voltage | 48 V |
| Certificates | |
| Certification | EN 301 489-1, EN 301 489-4, Class B (Europe), FCC47 CFR, part 15, class B (US), ICES-003, Class B (Canada), TEC/EMI/TEL-001/01, Class B (India), EN61000-4- 5, Class 4 (for PWR and ETH1/PoE ports), EN 60950-1, IEC 60950-1, UL 60950-1, CSA-C22.2 No.60950-1, EN 60950-22, UL 60950-22, CSAC22.2.60950-22, ETSI EN 300 019-1-1 Class 1.2, ETSI EN 300 019-1- 2 Class 2.3 |
| Operational conditions | |
| Operating temperature (T-T) | -33 - 55 °C |
| Storage temperature (T-T) | -45 - 60 °C |
| Weight & dimensions | |
| Weight | 6 kg |
| Width | 233 mm |
| Depth | 98 mm |
| Height | 230 mm |
| Technical details | |
| Frequency band | 24 - 38 GHz |
| Modulation | 8PSK, 16-QAM, 32-QAM, 64-QAM, 128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, QPSK |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3ac, IEEE 802.3ad |
| Colour | |
| Product colour | White |
