Description

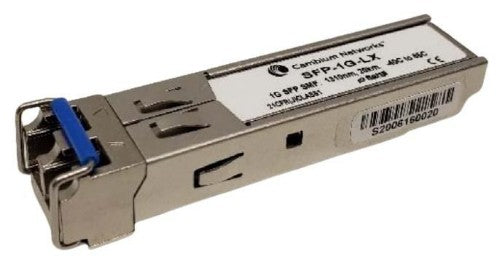

1Gbps SFP SMF Optical Transceiver, 1310nm, 20km
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Description
This SFP transceiver is a high performance, cost effective modules supporting data-rate of 1.25Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Performance | |
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Harmonized System (HS) code | 85369010 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
