1 x 5.25“, 1 x 3.5“, 2 x 2.5“, 2 x 3.5“, 457 x 430 x 88 mm, 6.62 kg
Key Features
- 19” Rack chassis with 2U height
- Short Depth (<500mm) for ATX M/B
- Solid build quality with 1.0mm steel
Description

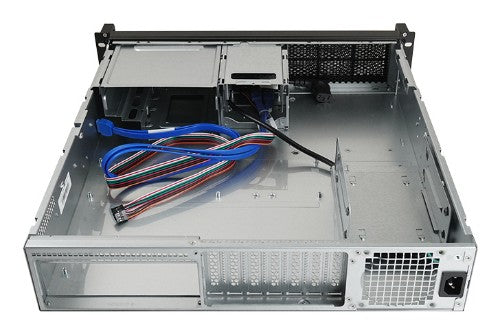

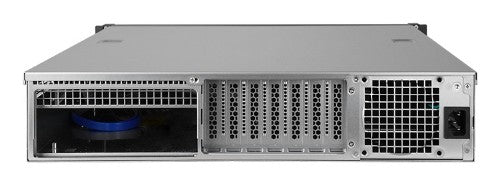

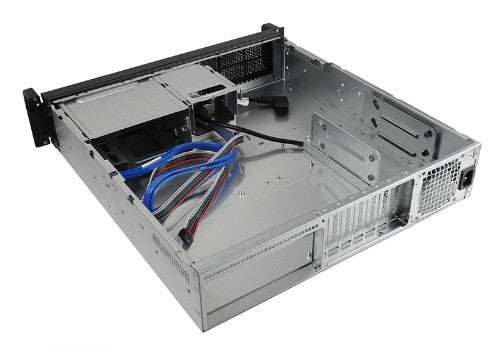

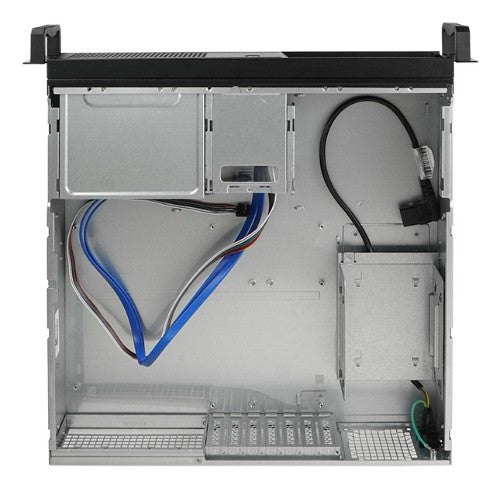

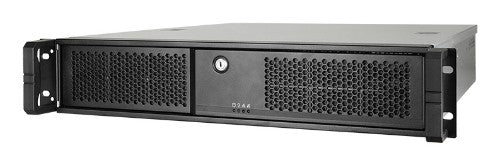

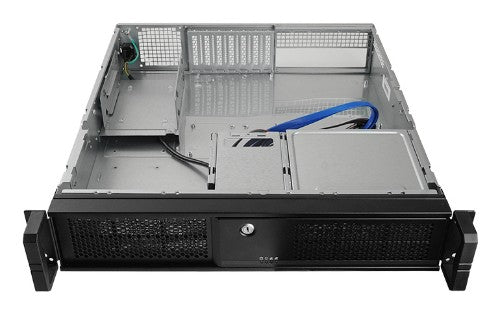

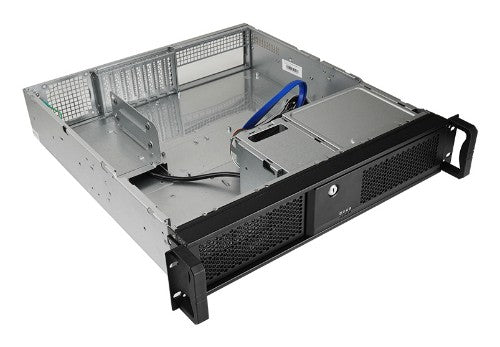

The UNC-209SR-B is a compact 2U ATX rackmount case, with a short depth of only 457mm, while able to install ATX motherboards. The robust build quality with 1.0mm thick SGCC steel ensures good protection of the hardware and serves as a reliable and flexible long-term solution. Two fast USB 3.1 ports in the front panel add to the features on of-fer with this chassis.
Specifications
| Design |
|---|
| Chassis type |
Rack (2U) |
| Product colour |
Black |
| Number of fans |
1 fan(s) |
| Storage |
|---|
| Storage drives installed |
No |
| Installed storage drive type |
HDD+SSD |
| Supported storage drive types |
HDD |
| Number of storage drives supported |
4 |
| Technical details |
|---|
| Warranty period |
2 year(s) |
| Compliance certificates |
CE, EAC, RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Power |
|---|
| Number of power supply units |
1 |
| Power supply unit (PSU) capacity |
400 W |
| Weight & dimensions |
|---|
| Width |
430 mm |
| Depth |
457 mm |
| Height |
88 mm |
| Weight |
6.62 kg |
| Package weight |
10.8 kg |
